Foundation Repair Photo Album: Crawl Space Repair in Murfreesboro, TN

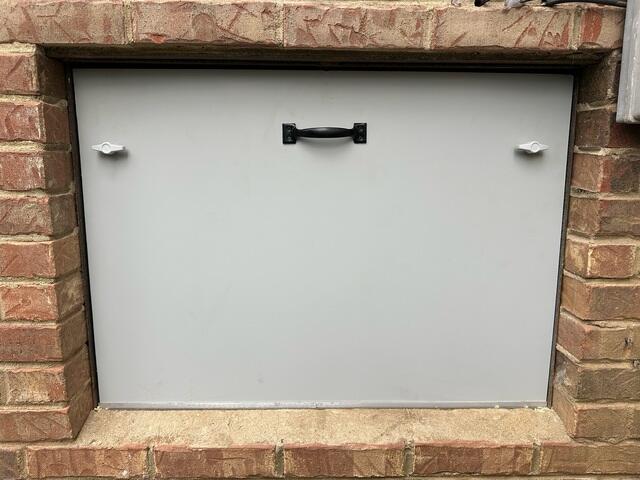

Michael in Murfreesboro, TN, contacted Frontier after noticing sloping floors in his home. During the inspection, the design specialist found several signs of moisture in the crawl space, including falling insulation and mold on the floor joists. The excess moisture had begun affecting the structure, causing the floor joists to bow and the floors above to slope. To restore the space, the Frontier crew soda blasted the wood to remove mold from the crawl space. SmartJacks were installed to lift and support the sagging floor joists. Once the structure was stabilized, drainage matting and a CleanSpace liner were installed to help control moisture in the crawl space. A SaniDry Sedona dehumidifier was added to control humidity and help keep the space dry. To complete the project, the team built a new frame and installed an EverLast door to properly seal the crawl space entrance.

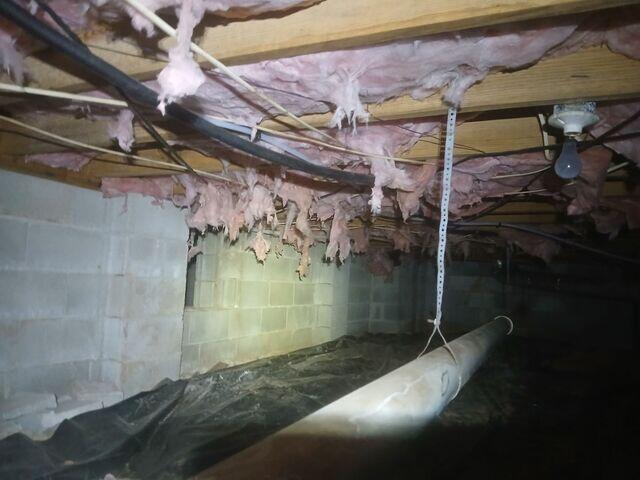

Falling Insulation

In a humid crawl space, insulation absorbs moisture from the air and becomes heavy. As it saturates, it can no longer stay secured between the floor joists and begins to sag or fall.

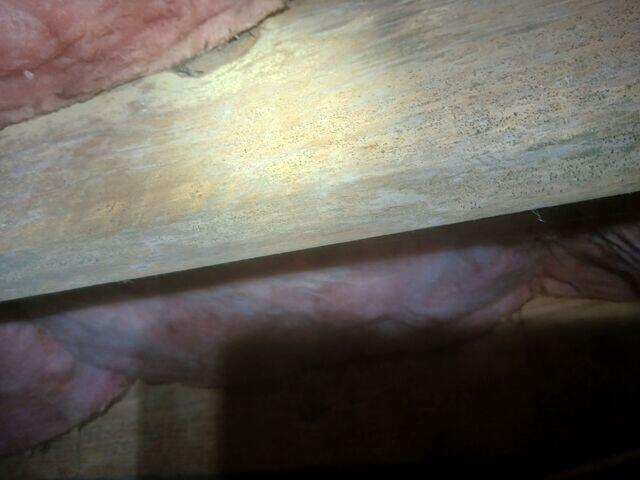

Mold on Floor Joists

The humid environment allows mold to thrive on organic material such as floor joists.

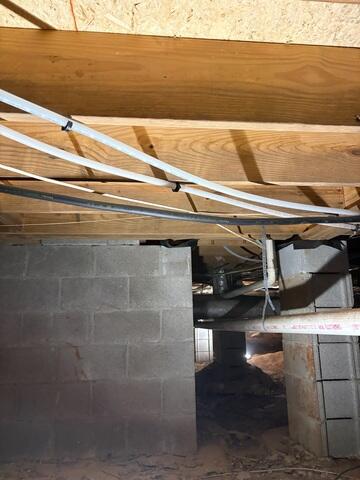

Clean Wood After Soda Blasting

Before encapsulation, the Frontier crew soda blasts the wood to remove mold from the surface and pores of the wood. This process creates a clean slate so the encapsulation system can better protect the wood moving forward.

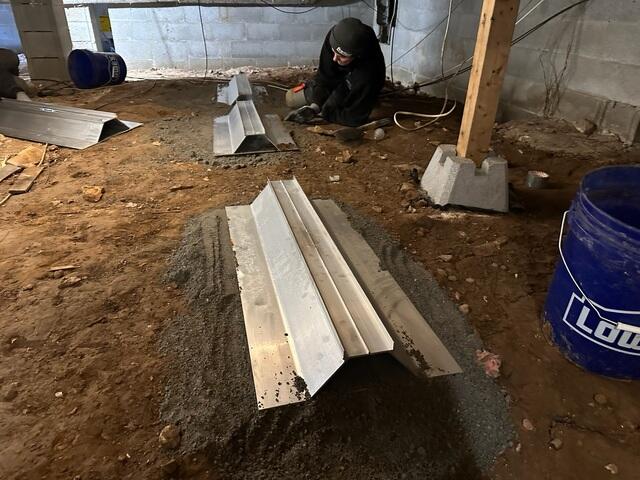

SmartJack Installation

These SmartJacks are installed in a shallow trench that is filled and compacted with gravel. This creates a stable base that distributes the home's weight across the ground, preventing the support posts from settling over time.

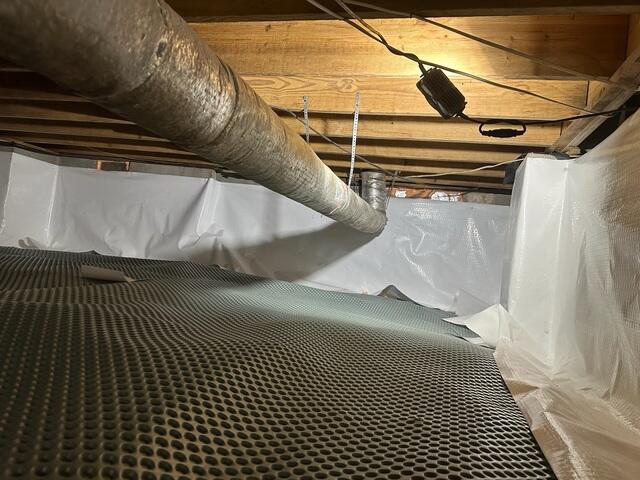

Installing Drainage Matting

The Frontier team installs drainage matting beneath the CleanSpace liner to allow water to move laterally across the crawl space floor and help prevent standing water from collecting under the liner.

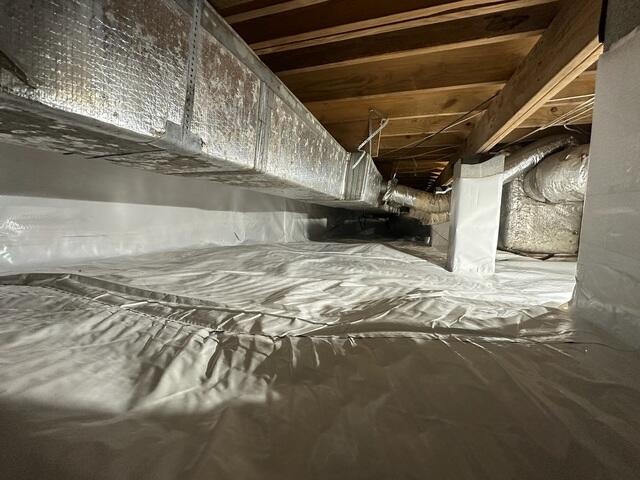

Completed Encapsulation

The encapsulation covers the walls, floor, and piers of the crawl space, creating a continuous barrier that helps seal the space from outside air and moisture. This protective liner helps keep the crawl space dry and controlled.

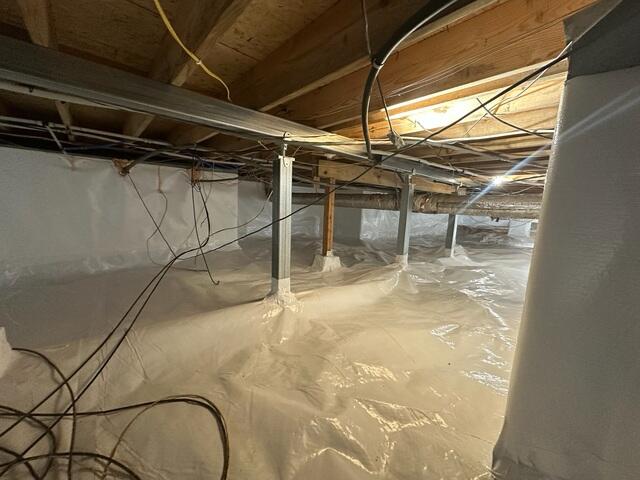

Finished SmartJacks

Once the SmartJacks are installed and adjusted, homeowners often notice their floors begin to lift back toward their original level. During encapsulation, the CleanSpace liner is carefully sealed around each SmartJack so outside air and moisture cannot seep into the crawl space through gaps around the supports.

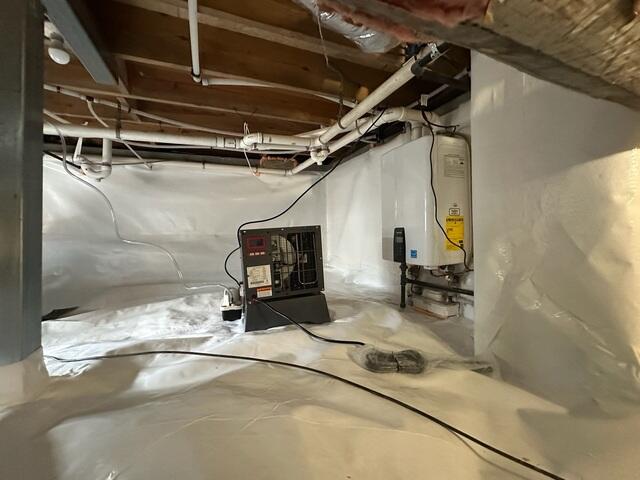

SaniDry Sedona Dehumidifier

A SaniDry Sedona dehumidifier is installed in the crawl space to keep the air dry and controlled.

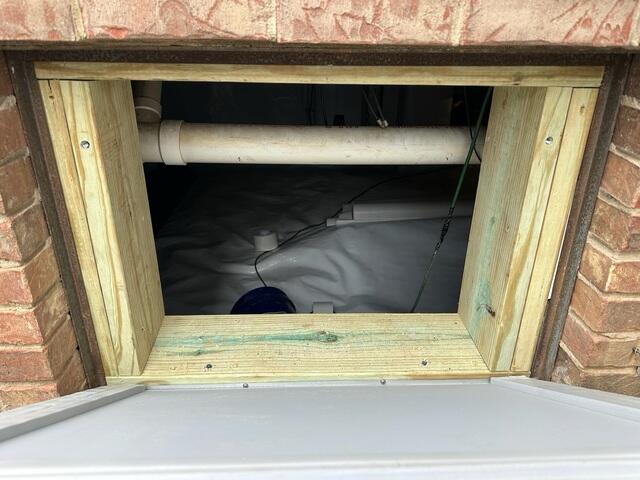

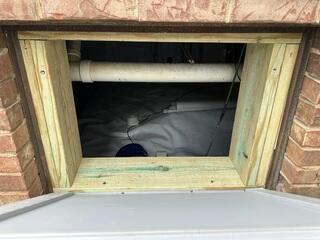

Crawl Space Door Frame

If the crawl space opening does not support an EverLast door on its own, the Frontier team can build a custom frame to securely install the door and create a properly sealed crawl space entrance.
