Crawl Space Repair Photo Album: Crawl Space Repair in Nashville, TN

Addressing moisture concerns was the top priority for this project in Nashville, TN. After stripping the crawl space of debris and the old, ineffective vapor barrier, we moved forward with a full encapsulation system. We installed our StarPipe crawl space drainage system, drainage matting under a durable CleanSpace liner and sealed the vents to manage the humidity. A SaniDry Sedona dehumidifier was added to actively dry the air, and the transformation was completed with the installation of a TripleSafe sump pump.

Crawl Space During Inspection

During the inspection, dust, mud, and debris are all around. Everything will have to be cleaned and removed before the project starts.

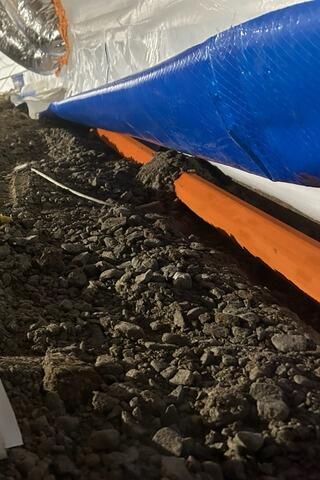

StarPipe Installed

StarPipe™ is a custom-engineered drainage system for crawl spaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

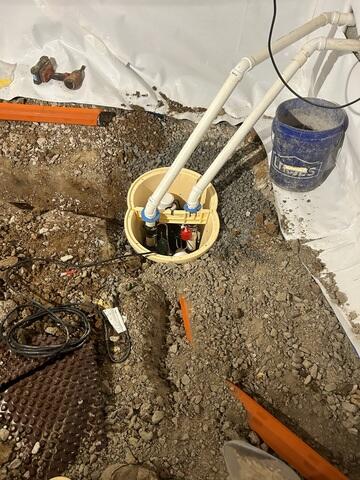

TripleSafe Being Installed

The container is placed, and the sump pump is assembled inside.

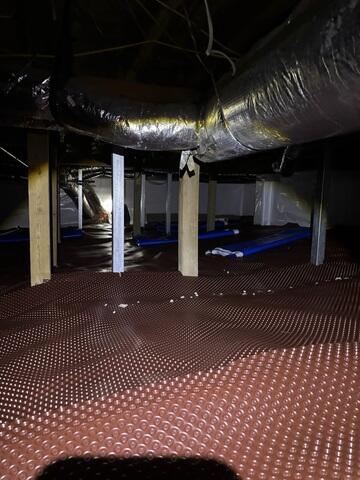

Drainage Matting

This dimpled plastic sheet material promotes good drainage over the entire crawl space floor.

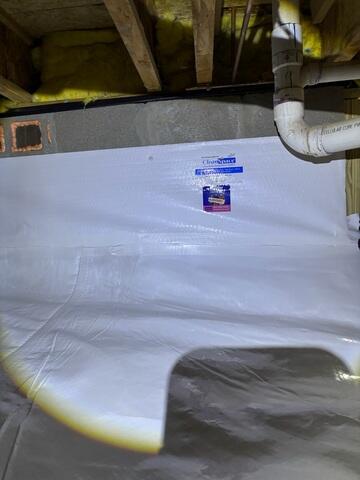

Vents Sealed

Sealing your crawl space vents stops the cycle of cold, humidity, and moisture entering from the outside air.

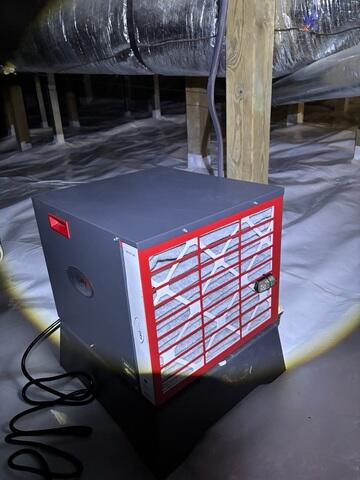

The SaniDry Sedona

As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.

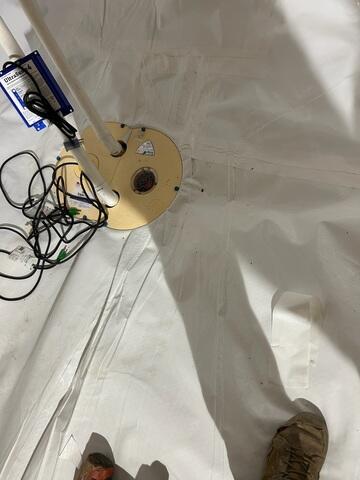

TripleSafe Sump Pump Installed

A TripleSafe® Sump Pump System (shown here), combined with a SaniDry® dehumidifier, represents the ultimate in crawl space waterproofing and humidity control.

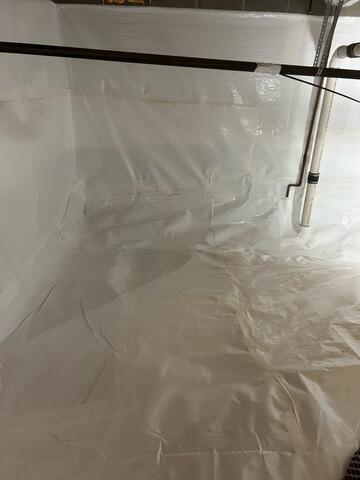

CleanSpace Liner

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

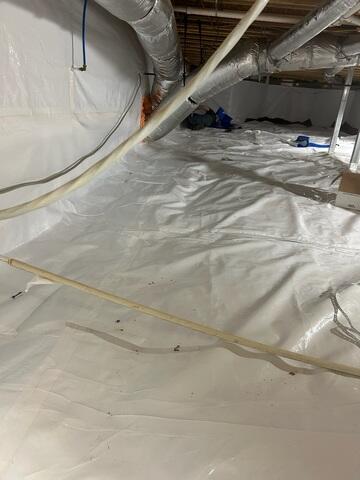

Crawl Space Sealing

Crawl space sealing and insulation will help you avoid unnecessary repairs, create a healthier living space, and save money on your utility bills. And once you've encapsulated your crawl space with a vapor barrier, you've gained valuable storage space in your home.

LawnScape Installation

LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.
