Crawl Space Repair Photo Album: Crawl Space Repair in Franklin, TN

This customer in Franklin, TN, called Frontier due to moisture issues and a sagging crawl space. We decided on a crawl space encapsulation to address the moisture and SmartJacks to stabilize the unlevel floors. Once the structure was stabilized with our SmartJack system, we started the encapsulation process. This included installing our StarPipe crawl space drainage system, Drainage matting, CleanSpace liner, a TripleSafe sump pump, and a SaniDry Sedona dehumidifier. We finished this project by installing an IceGuard and LawnScape system.

Moisture Issues in Crawl Space

Moisture, mold and falling, failing insulation are problems in this crawl space, which hasn't been properly sealed. The encapsulation treatment totally separates and protects the crawl space interior from outdoor conditions, keeping the space clean and dry.

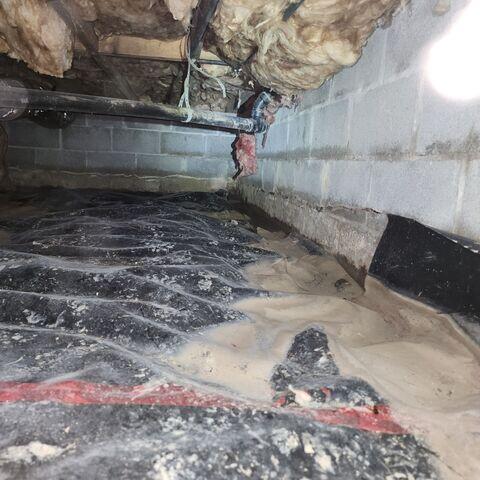

Crawl Space Before Project

Crawl space sealing and insulation will help you avoid unnecessary repairs, create a healthier living space, and save money on your utility bills. And once you've encapsulated your crawl space with a vapor barrier, you've gained valuable storage space in your home.

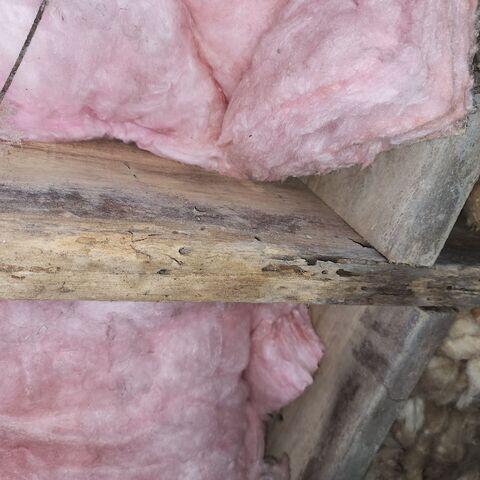

Mold Growth

Mold growth is visible on the wooden floor joists. Without addressing the moisture in this crawl space, the mold growth will continue to rot the wood and cause more structural damage.

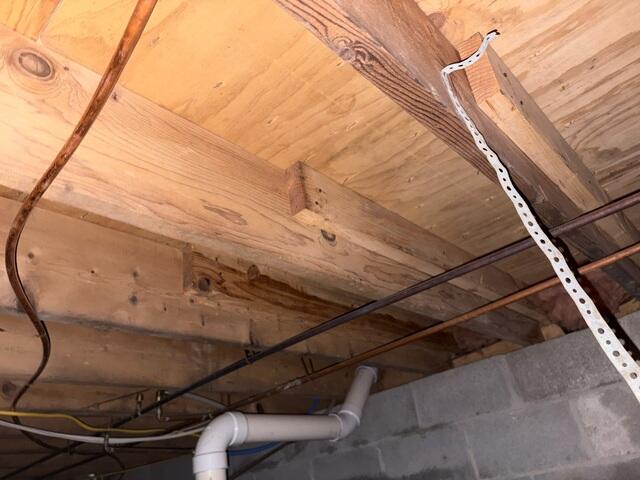

Floor Joists after Mold Remediation

After the insulation and debris are removed, the mold is treated with Soda Blasting. Sodium Bicarbonate is a granular powder that is non-toxic, food grade, with no vapors or offgassing. It is blown with high-pressure air at the infected lumber. The mold is blown off without damaging the lumber, and falls to the floor. The mold is killed by the blasting action and the soda instantly changes the ph, so what falls is not active mold, but simply inert dust.

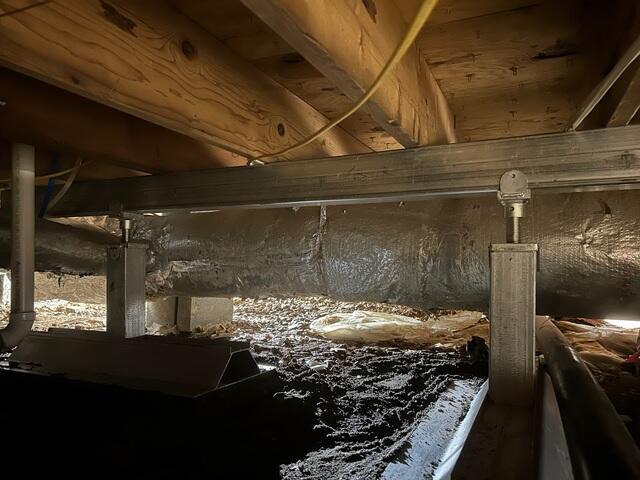

The SmartJack System

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

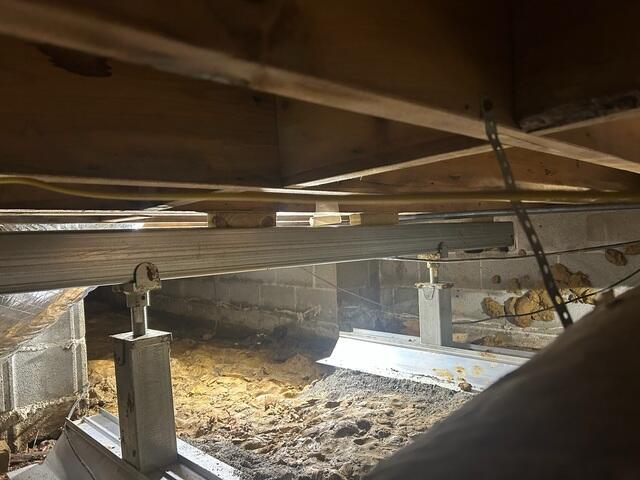

Stronger Crawl Space Support

Our crawl space support system can support vertical loads exceeding 60,000 pounds, which is far stronger than conventional concrete repairs.

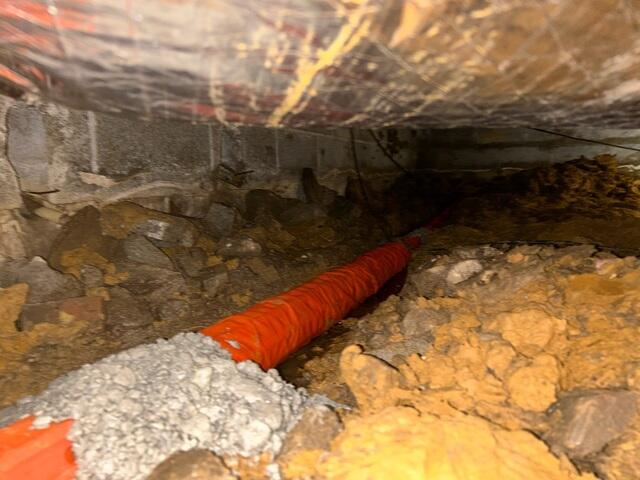

StarPipe Installation

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawl space and drain to a sump system, allowing the water to quickly evacuate from the crawl space.

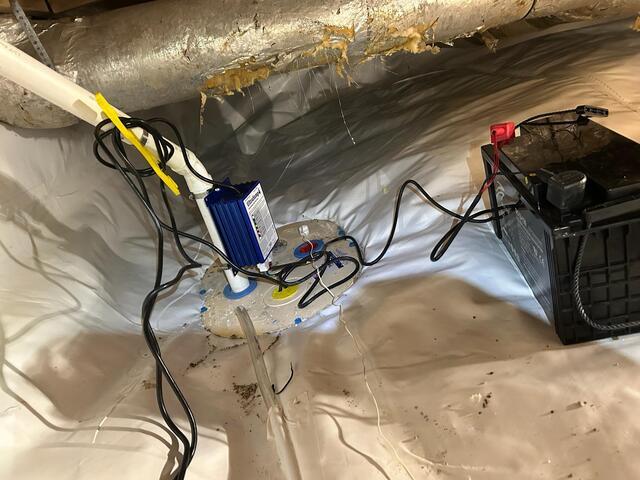

TripleSafe Sump Pump

A TripleSafe® Sump Pump System (shown here), combined with a SaniDry® dehumidifier, represents the ultimate in crawl space waterproofing and humidity control.

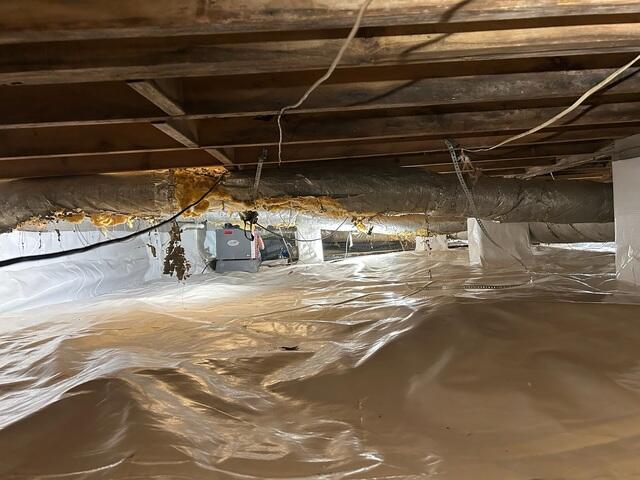

CleanSpace Liner

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.
