Crawl Space Repair Photo Album: Crawl Space Repair in Gallatin, TN

This customer in Gallatin, TN, called Frontier after noticing the doors on the inside of the home were starting to stick and becoming difficult to open and close. This customer had SmartJacks installed a couple of years ago, but with the continued moisture issues, the SmartJacks had started to sink. We made adjustments to the Smartjacks to stabilize the structure and completed a complete encapsulation to address the moisture issues and prevent this from recurring. Now the crawl space is dry, clean, and stabilized for the long term.

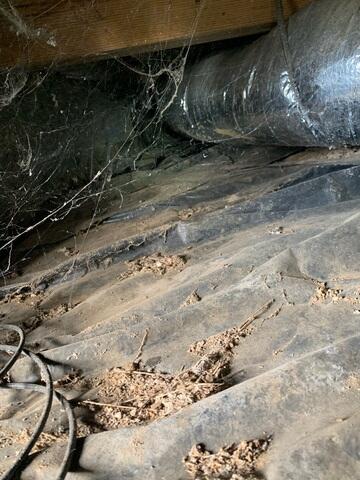

Crawl Space Before Project

Moisture, mold and falling, failing insulation are problems in this crawl space, which hasn't been properly sealed. The encapsulation treatment totally separates and protects the crawl space interior from outdoor conditions, keeping the space clean and dry.

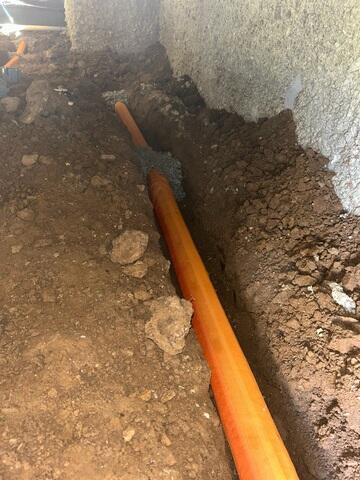

Crawl Space Drainage System

StarPipe™ is a custom-engineered drainage system for crawlspaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

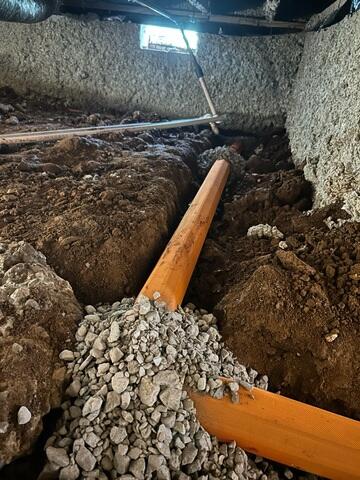

StarPipe™ Installation

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawl space and drain to a sump system, allowing the water to quickly evacuate from the crawl space.

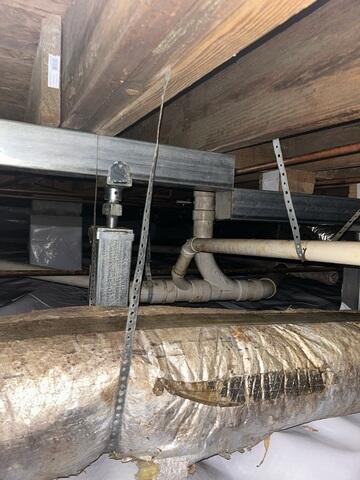

SmartJacks

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

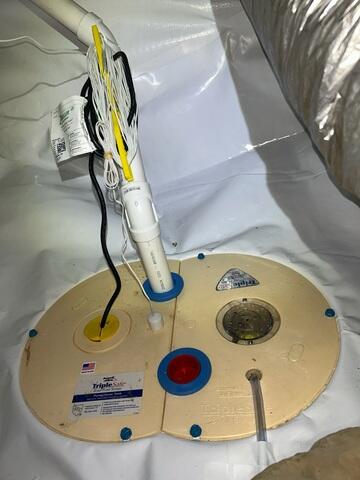

TripleSafe™ Sump Pump System

A TripleSafe® Sump Pump System (shown here), combined with a SaniDry® dehumidifier, represents the ultimate in crawl space waterproofing and humidity control.

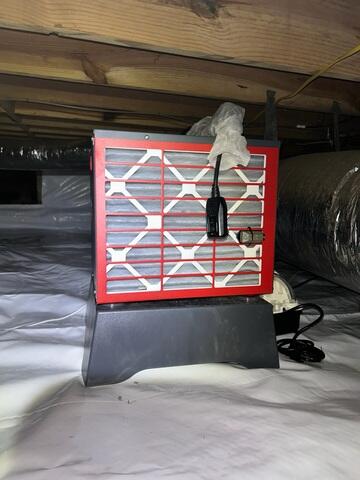

The SaniDry Sedona Dehumidifier

As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.

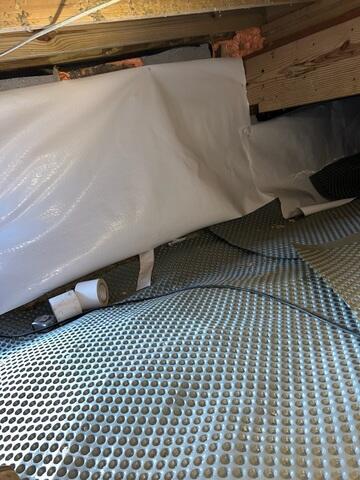

Vents Sealed

Vents are sealed off and CleanSpace is being installed on the walls of this crawl space.

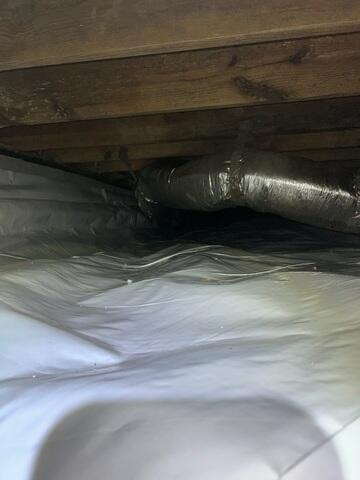

CleanSpace Liner Installation Complete

Crawl space sealing and insulation will help you avoid unnecessary repairs, create a healthier living space, and save money on your utility bills. And once you've encapsulated your crawl space with a vapor barrier, you've gained valuable storage space in your home.

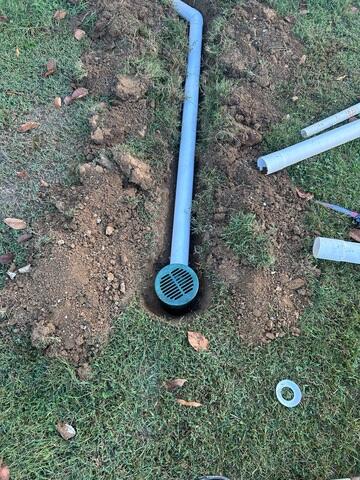

LawnScape System

LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.

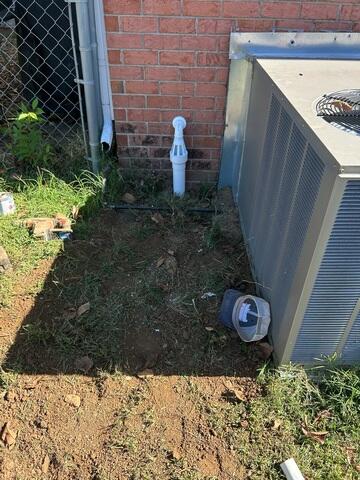

IceGuard and LawnScape System Installation

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe. LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe.
