Crawl Space Repair Photo Album: Crawl Space Repair in Richmond, KY

Justin L. in Richmond, KY, contacted Frontier Foundation & Crawl Space Repair to address moisture issues in the crawl space of an apartment complex. Water was seeping in through the foundation vents, leading to moisture in the crawl space. To manage the water intrusion, our team installed five TripleSafe single-pump systems, each equipped with a cast-iron 1/3 HP pump, twin pump liner, airtight lid with floor drain, and CleanPump stand. Each system also includes a WaterWatch® alarm to alert the property owner of any potential pump failures. For moisture control, Frontier installed CleanSpace 20-mil high-performance moisture barrier on the crawl space floor with CleanSpace Drainage Matting beneath. A Crawl Space Drainage System and CleanSpace wall liner were also added to fully encapsulate and protect the space. The drainage lines and sump pumps were discharged on both sides of the building through IceGuards and LawnScape outlets to ensure proper water flow and freeze protection. To regulate humidity and air quality, a SaniDry Sedona dehumidifier and air filtration system was installed. Frontier also ran new circuits for the dehumidifier and pump systems to ensure reliable operation.

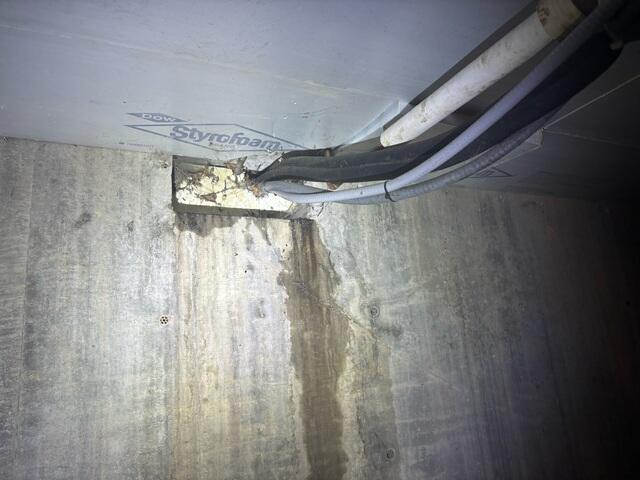

Inside the Crawl Space Vent

Moisture is seeping into the crawl space where the plumbing exists in the building because it is not sealed correctly.

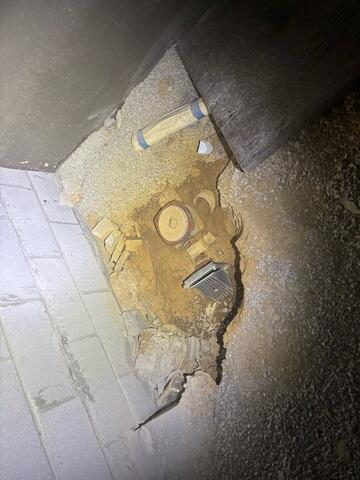

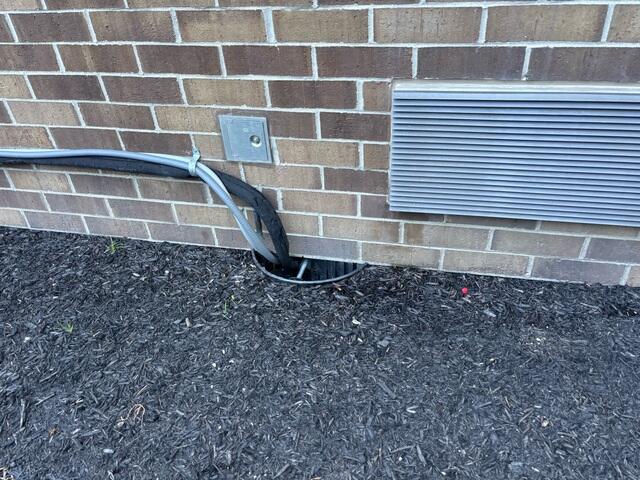

Open Crawl Space Vent

Vents that open towards the sky create a well that pools water, pressuring water into the crawl space.

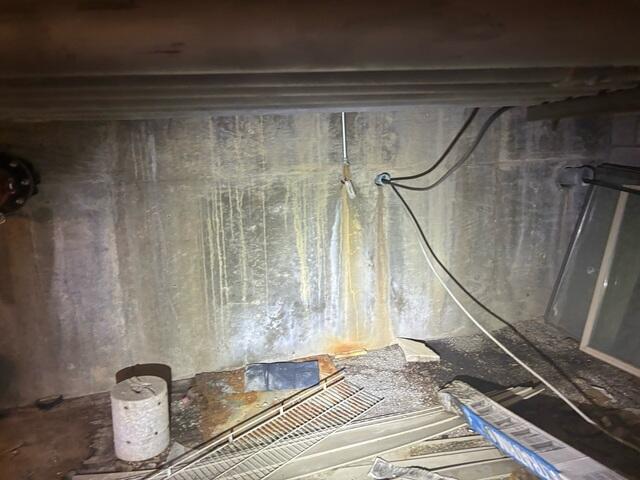

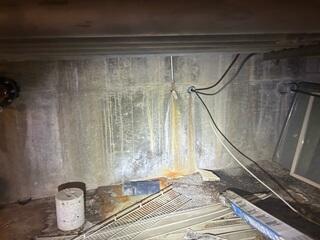

Efflorescence on the Walls

Moisture is also seeping through the concrete, leading to efflorescence.

Water Pooling by the Drain

An ineffective drain becomes clogged, leading to pooling water and moisture in the crawl space.

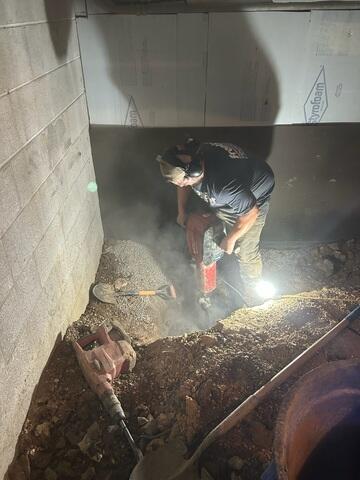

Making Space for the Sump Pump

Frontier is jackhammering a hole in the crawl space floor to insert a Triple Safe pump.

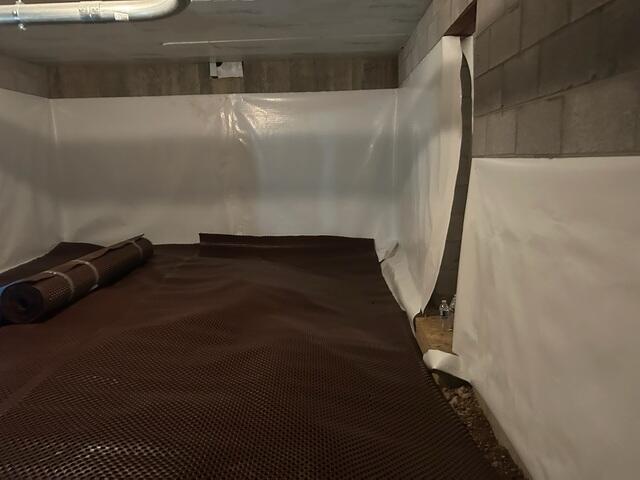

CleanSpace Drainage Matting

Clean Space Drainage Matting is installed under the CleanSpace moisture barrier to allow any water to flow towards the pumps.

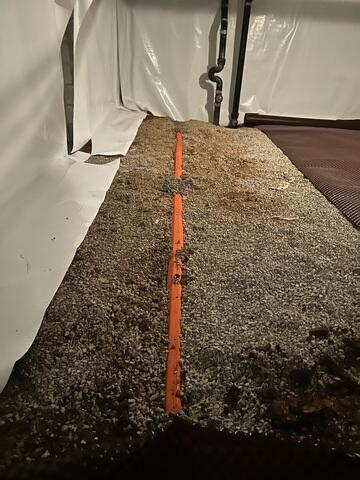

Drainage System

A Crawl Space Drainage System is installed to direct water out of the building.

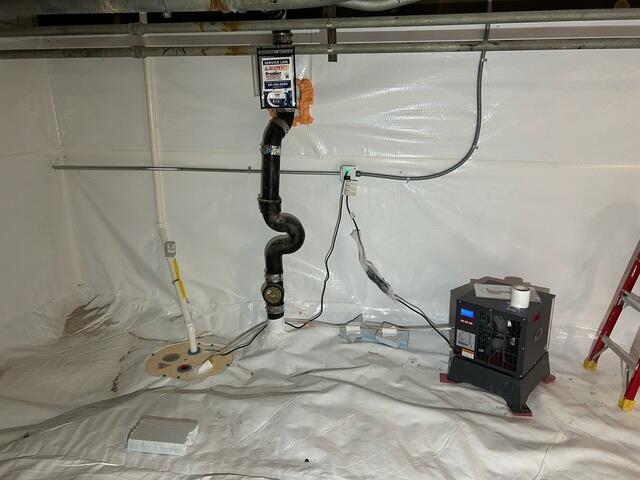

Triple Safe pump and SaniDry Sedona

To regulate humidity and air quality, a SaniDry Sedona dehumidifier and air filtration system was installed. Frontier also ran new circuits for the dehumidifier and pump systems to ensure reliable operation.

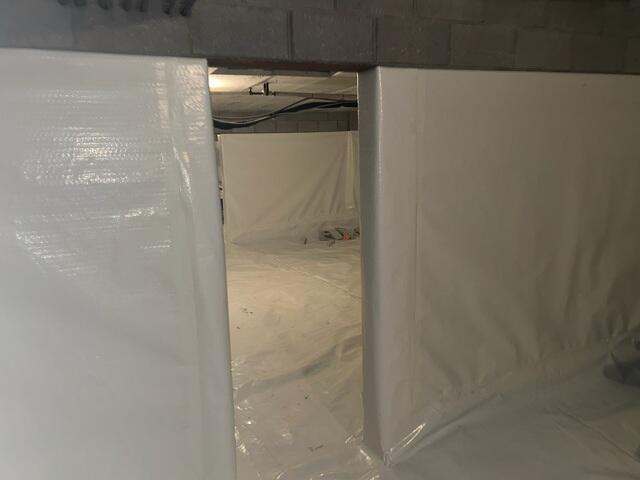

CleanSpace wall liner

A CleanSpace wall liner was also added to fully encapsulate and protect the space.

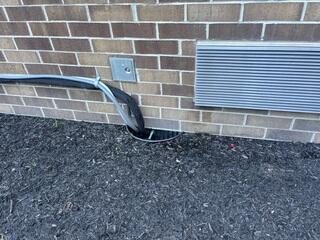

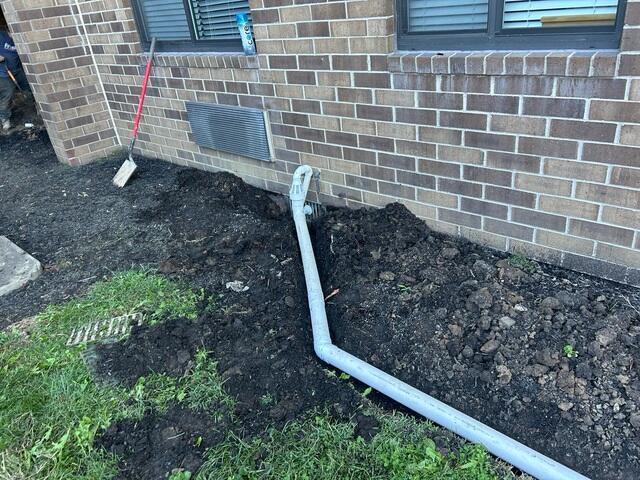

Ice Guard

The drainage lines and sump pumps were discharged on both sides of the building through IceGuards and LawnScape outlets to ensure proper water flow and freeze protection.
