Crawl Space Repair Photo Album: Crawl Space Repair in Joelton, TN

This customer in Joelton, TN, called Frontier due to moisture issues and a sinking crawl space. We decided on a crawl space encapsulation to address the moisture and SmartJacks to stabilize the crawl space sinking. Once the structure was stabilized with our SmartJack system, we started the encapsulation process. This included installing our StarPipe crawl space drainage system, SilverGlo panels to seal the vents off, Drainage matting, CleanSpace liner, a SaniDry Sedona dehumidifier, and a TripleSafe sump pump. We finished the project with an IceGuard and LawnScape drainage system.

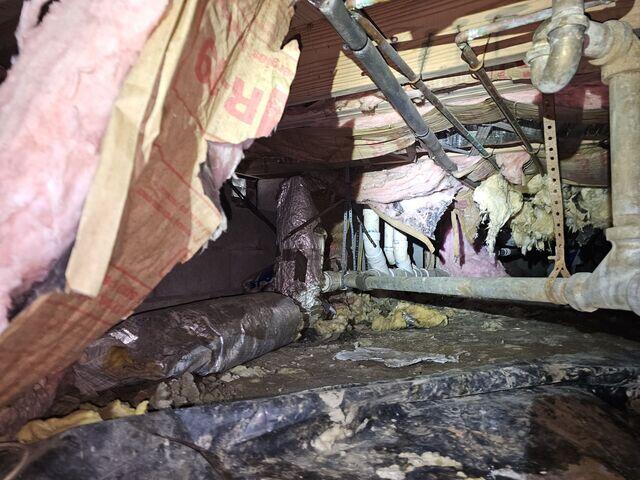

Crawl Space During Inspection

Moisture, mold and falling, failing insulation are problems in this crawl space, which hasn't been properly sealed. The encapsulation treatment totally separates and protects the crawl space interior from outdoor conditions, keeping the space clean and dry.

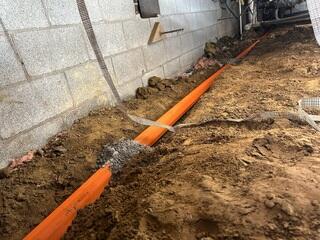

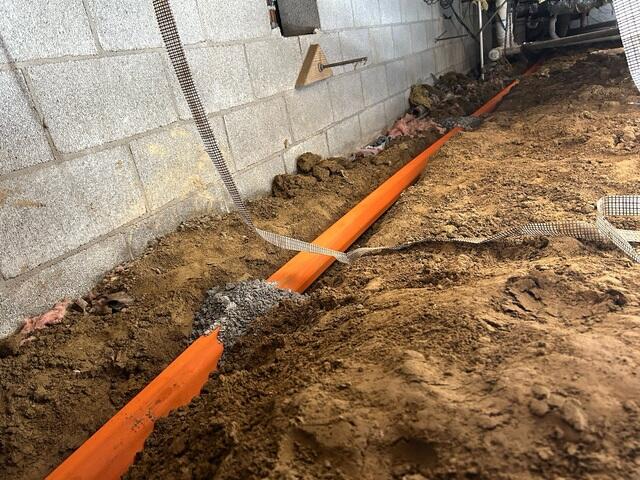

StarPipe™

StarPipe™ is a custom-engineered drainage system for crawlspaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

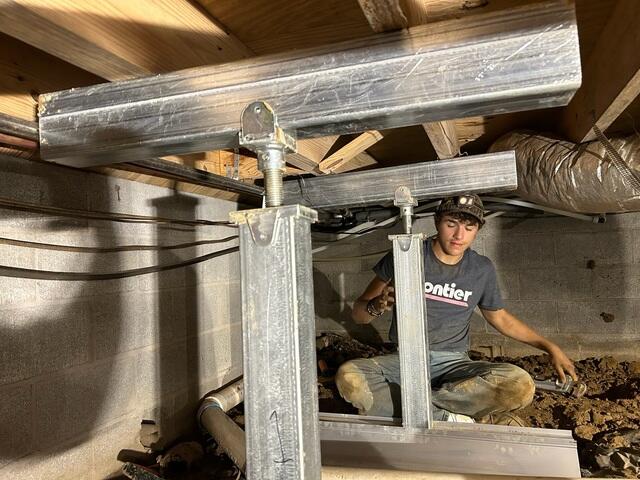

SmartJack Support System Installation

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.5

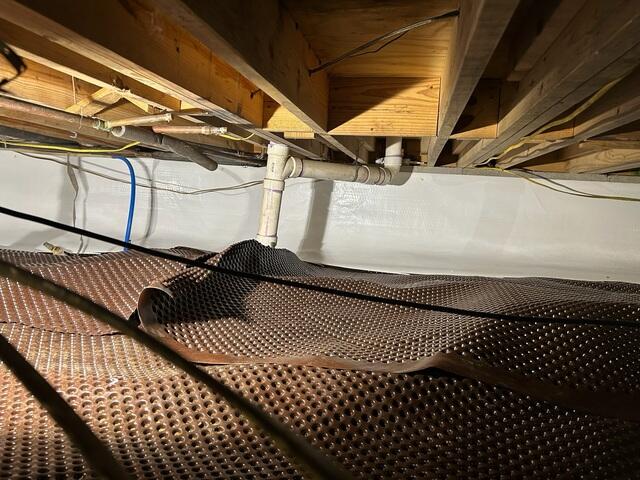

Drainage Matting

This dimpled plastic sheet material promotes good drainage over the entire crawl space floor.

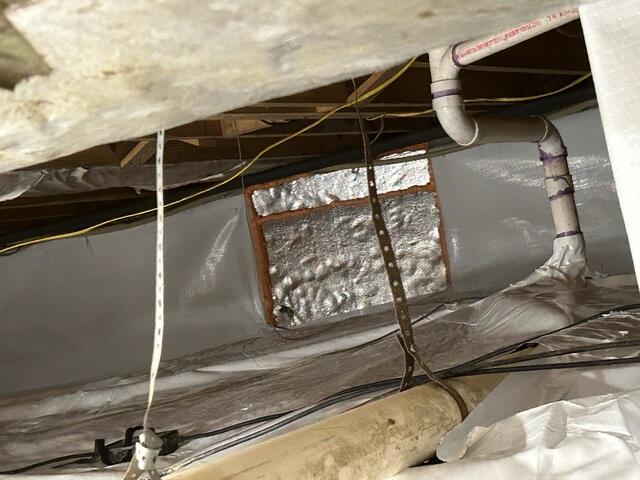

SilverGlow Panels

Sealing your crawl space vents stops the cycle of cold, humidity, and moisture entering from the outside air.

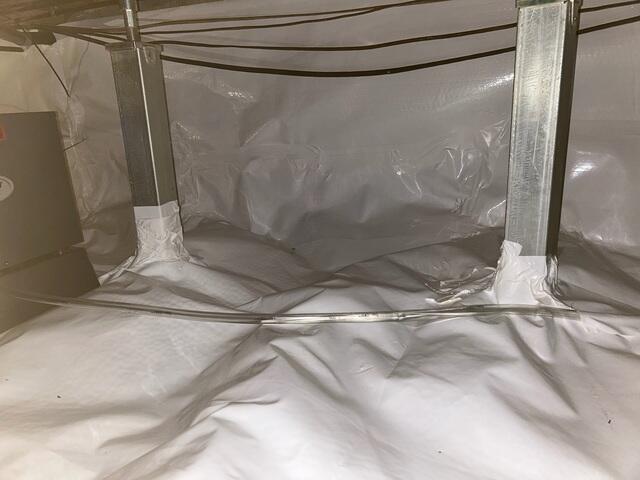

CleanSpace Vapor Barrier

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

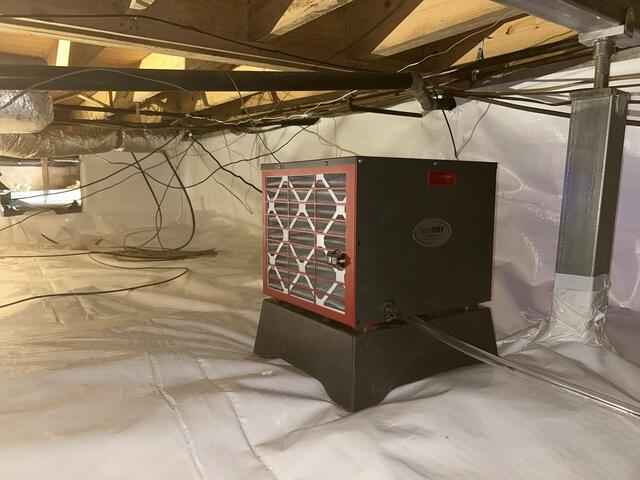

The SaniDry Sedona

The Sedona easily fits in small crawl spaces, yet has a powerful blower to effectively dry large crawl spaces. Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance. As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.

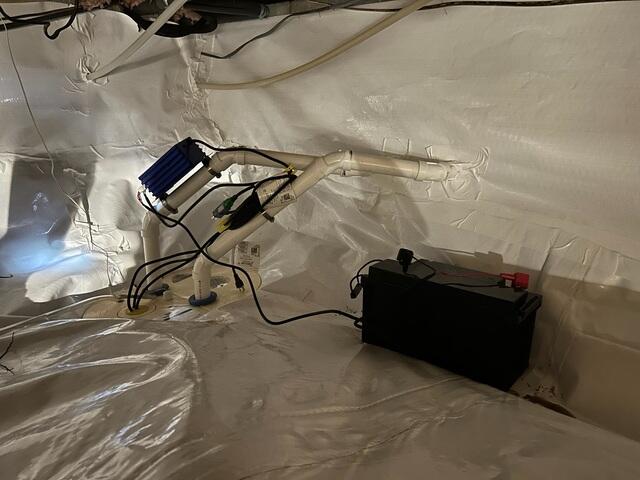

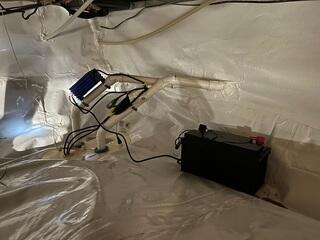

TripleSafe Sump Pump

Our most reliable sump pump system, the TripleSafe™ Sump Pump System, provides three levels of protection for your crawl space and your peace of mind. For normal functioning, the TripleSafe™ has a powerful, cast-iron Zoeller® ⅓ horsepower sump pump set at the lowest level. For heavy volumes of water or in case of primary pump failure, a second, more powerful Zoeller® ½ hp pump set a bit higher in the liner will take over.

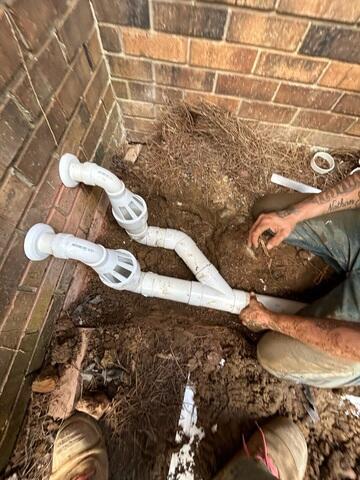

IceGuard System Installed

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe.

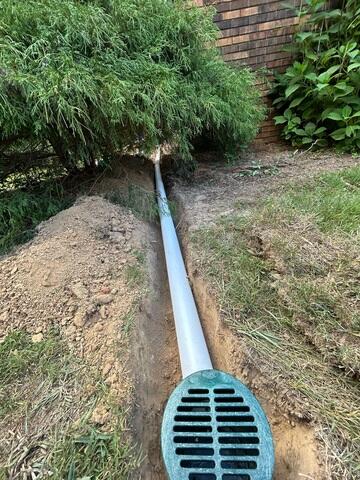

LawnScape™

LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.
