Crawl Space Repair Photo Album: Crawl Space Repair in Nashville, TN

This customer in Nashville, TN called Frontier due to moisture issues and failing crawl space supports. Once the structure was stabilized with SmartJacks, we started a crawl space encapsulation to tackle the moisture issues. This included installing our StarPipe crawl space drainage system, adding drainage matting to the floors, using CleanSpace liner, and installing a TripleSafe sump pump, SaniDry Sedona dehumidifier, and an IceGuard and LawnScape system. These products will keep their crawl space clean, dry, and moisture-free.

Interior Cracking

Interior cracking around doorways, sticking windows and doors, and sloping floors are clear indications that the crawl space floor is sinking and needs additional support to stop the sinking and lift the structure back up.

Crawl Space Before Project

Moisture, mold and falling, failing insulation are problems in this crawl space, which hasn't been properly sealed.

SmartJack Support System

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

Stronger Crawl Space Support

Our crawl space support system can support vertical loads exceeding 60,000 pounds, which is far stronger than conventional concrete repairs.

StarPipe™ Installed

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawlspace and drain to a sump system, allowing the water to quickly evacuate from the crawlspace or from under the crawl space floor.

Drainage Matting Installed

This dimpled plastic sheet material promotes good drainage over the entire crawl space floor.

Vents Sealed

Sealing your crawl space vents stops the cycle of cold, humidity, and moisture entering from the outside air.

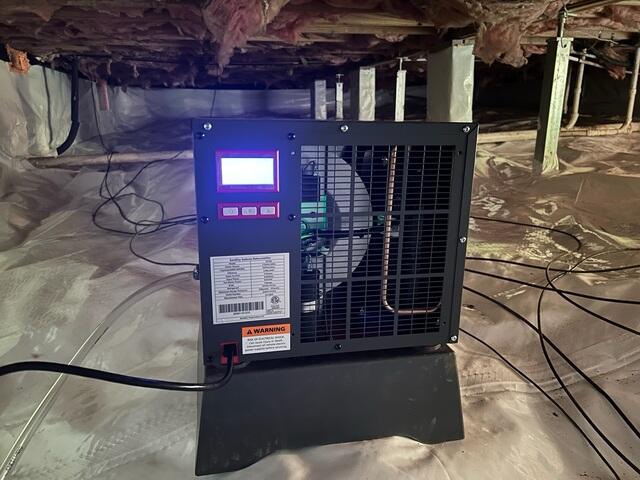

The SaniDry Sedona

The Sedona easily fits in small crawl spaces, yet has a powerful blower to effectively dry large crawl spaces. Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance. As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.

TripleSafe Sump Pump

Our most reliable sump pump system, the TripleSafe™ Sump Pump System, provides three levels of protection for your crawl space and your peace of mind. For normal functioning, the TripleSafe™ has a powerful, cast-iron Zoeller® ⅓ horsepower sump pump set at the lowest level. For heavy volumes of water or in case of primary pump failure, a second, more powerful Zoeller® ½ hp pump set a bit higher in the liner will take over.

CleanSpace Fully Installed

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.
