Crawl Space Repair Photo Album: Crawl Space Repair in Springfield, TN

This customer in This customer in Springfield, TN, called Frontier to help with sinking crawl space supports and a water intrusion issue in the crawl space. After draining excess water out, we started on the project. To address the structural issues we installed our SmartJack system to stabilize the floor. After that, we added our StarPipe crawl space drainage system and TripleSafe sump pump. We finished the project by installing an IceGuard and LawnScape system.

Crawl Space During Inspection

During inspection, mud and signs of water damage are visible in this crawl space.

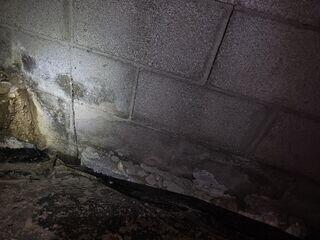

Water Damage

More signs of water damage. The concrete block wall has water marks where water is seeping out.

Failing Crawl Space Support

The crawl space supports in this crawl space are failing. They are sinking and leaning as seen by the level.

Mold

Mold is starting to grow on the wall where water has been seeping out. This problem will only get worse if the moisture issue is not addressed.

SmartJack System Installed

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

Installation of Sump Pump and Drainage System

The sump pump is put in place and the StarPipe is installed around the perimeter of the crawl space to drain into the sump pump.

StarPipe Installation

StarPipe™ is a custom-engineered drainage system for crawlspaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

StarPipe Installation Complete

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawlspace and drain to a sump system, allowing the water to quickly evacuate from the crawlspace.

TripleSafe Sump Pump Installed

Our most reliable sump pump system, the TripleSafe™ Sump Pump System, provides three levels of protection for your basement and your peace of mind. For normal functioning, the TripleSafe™ has a powerful, cast-iron Zoeller® ⅓ horsepower sump pump set at the lowest level. For heavy volumes of water or in case of primary pump failure, a second, more powerful Zoeller® ½ hp pump set a bit higher in the liner will take over.

IceGuard and LawnScape

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe. LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning.
