Crawl Space Repair Photo Album: Crawl Space Repair in Nashville, TN

A customer in Nashville, TN, called Frontier because they were concerned about a musty smell in their crawl space. To mitigate the moisture issue causing the smell, we cleaned out all the debris, installed Drainage matting, covered the crawl space in CleanSpace liner, installed a SaniDry Sedona dehumidifier, and sealed the crawl space vents and any other air leaks with SilverGlo panels and spray foam insulation. These products will work together to keep the crawl space dry.

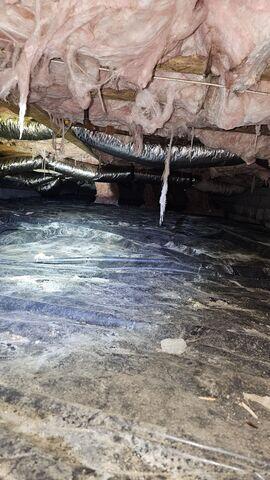

Crawl Space During Inspection

Moisture, mold and falling, failing insulation are problems in this crawl space, which hasn't been properly sealed.

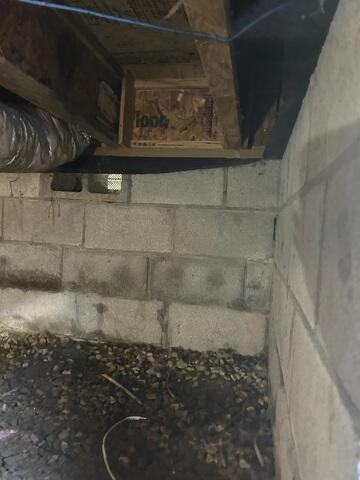

Water Damage

Water damage is visible in this crawl space, you can see the water lines on the concrete block wall and the pooling water in the corner. An open vent is also visible, this will be sealed with SilverGlo panels and spray foam insulation to keep the outside air out.

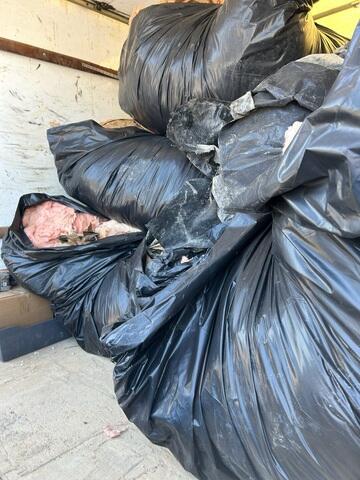

Debris Removed

This picture shows the amount of debris removed from inside the crawl space. We will bag this all up and remove it, leaving nothing behind but a clean and dry crawl space for the customer.

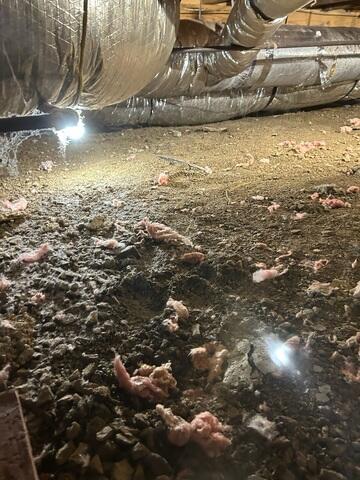

Crawl Space After Debris Removed

The wet insulation has been removed as well as the old vapor barrier. Now, we will clean up these last little bits left before we start to install the waterproofing products.

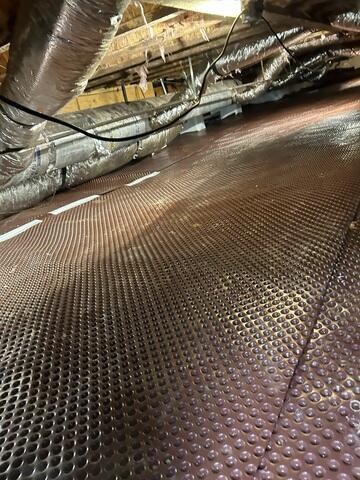

Drainage Matting Installed

This dimpled plastic sheet material promotes good drainage over the entire crawl space floor.

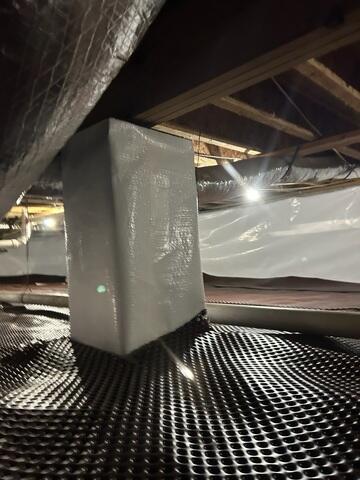

Crawl Space Piers

Piers are wrapped in CleanSpace® poly to create a continuous air and moisture barrier.

CleanSpace Vapor Barrier

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

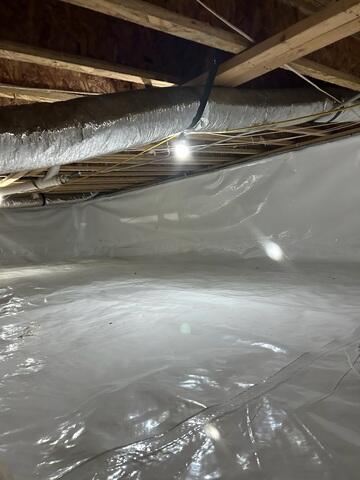

CleanSpace Liner Installation Complete

Crawl space sealing and insulation will help you avoid unnecessary repairs, create a healthier living space, and save money on your utility bills. And once you've encapsulated your crawl space with a vapor barrier, you've gained valuable storage space in your home.

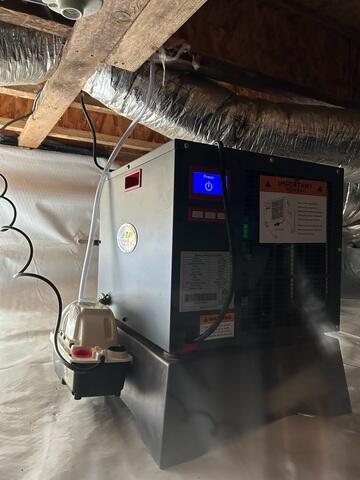

The SaniDry Sedona

The Sedona easily fits in small crawl spaces, yet has a powerful blower to effectively dry large crawl spaces. Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance. As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.
