Crawl Space Repair Photo Album: Crawl Space Repair in Nashville, TN

This customer in Nashville, TN called Frontier due to moisture issues in their crawl space. They also had some sinking and settlement issues. After we addressed the structural issues by installing our SmartJack system, we moved on to mitigating the moisture issues by completing a crawl space encapsulation. First, we removed all the debris, then we installed Drainage matting, completely covered the crawl space in CleanSpace liner, added a SaniDry Sedona dehumidifier, and sealed off all air leaks and vents with SilverGlo panels and spray foam insulation. We finished the project with a new EverLast crawl space door.

Interior Cracking

When your crawl space starts to sag, you will see signs like interior cracks, especially around doorways and windows due to the sloping of the floor.

Checking Measurements

Checking measurements on the first floor of the home gives us exact information on where the crawl space is sagging and where it will need extra supports to stop it from sinking more and lift it back up.

Moisture Damage

Moisture is an issue in this crawl space, which hasn't been properly sealed. All of this debris will be cleaned out before we start the project.

Debris Removed

All the debris in this crawl space has been removed and bagged up. Now the waterproofing products can be installed to encapsulate the crawl space.

SmartJack System Installed

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It provides supplemental support to your failing structure and can often lift failing floor joists or beams, restoring them to their original position.

Drainage Matting Installed

Drainage matting is installed over the entire crawl space floor. This dimpled plastic sheet material promotes good drainage over the entire crawl space floor.

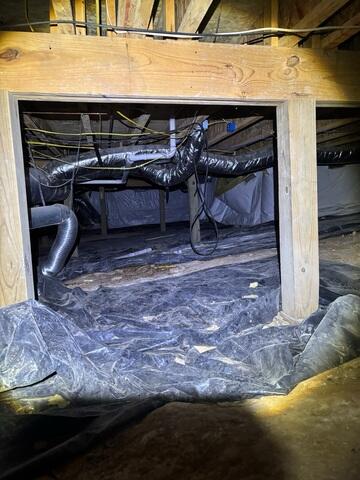

CleanSpace Installation

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

Vents Sealed

The crawl space vents are sealed with SilverGlo panels. Sealing your crawl space vents stops the cycle of cold, humidity, and moisture entering from the outside air.

Stronger Crawl Space Support

Our crawl space support system can support vertical loads exceeding 60,000 pounds, which is far stronger than conventional concrete repairs.

The SaniDry Sedona

The Sedona easily fits in small crawl spaces, yet has a powerful blower to effectively dry large crawl spaces. Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance. As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.
