Crawl Space Repair Photo Album: Crawl Space Repair in Cadiz, KY

A customer in Cadiz, KY, called Frontier due to sagging floors and moisture issues. We decided on a crawl space encapsulation and SmartJacks to stabilize it. Once the structure was stabilized with our SmartJack system, we started the encapsulation process. This included installing our SmartPipe Crawl Space drainage system, Drainage matting, CleanSpace liner, a SaniDry Sedona dehumidifier, and a TripleSafe sump pump. We finished the project with an IceGuard and LawnScape System.

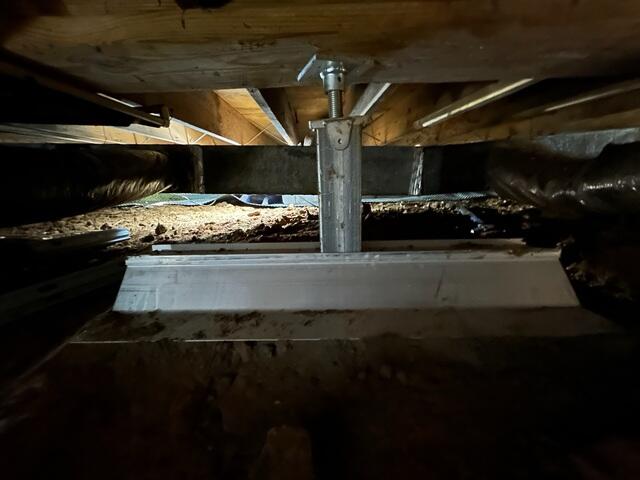

SmartJack System Installed

The SmartJack Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces. It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

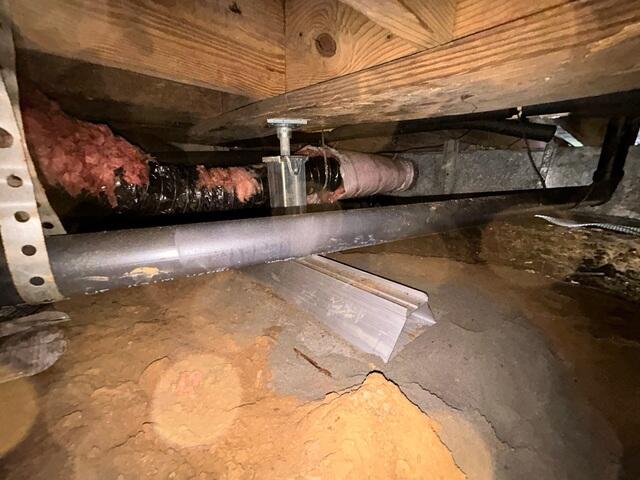

Versatile Installation

The SmartJack 's portable size allows it to be installed in even the tightest of crawl spaces.

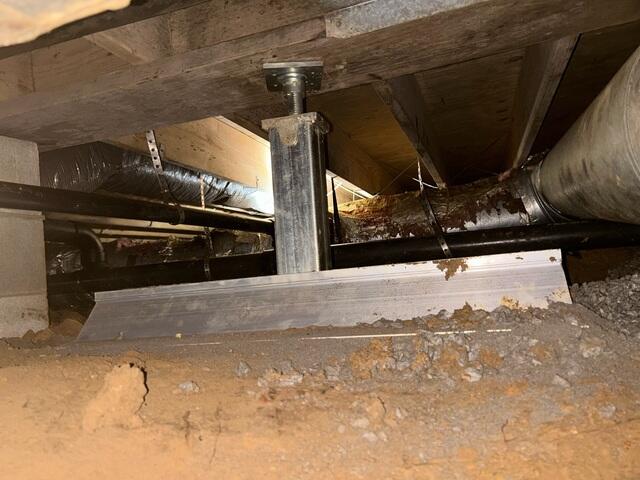

Stronger Crawl Space Support

Our crawl space support system can support vertical loads exceeding 60,000 pounds, which is far stronger than conventional concrete repairs.

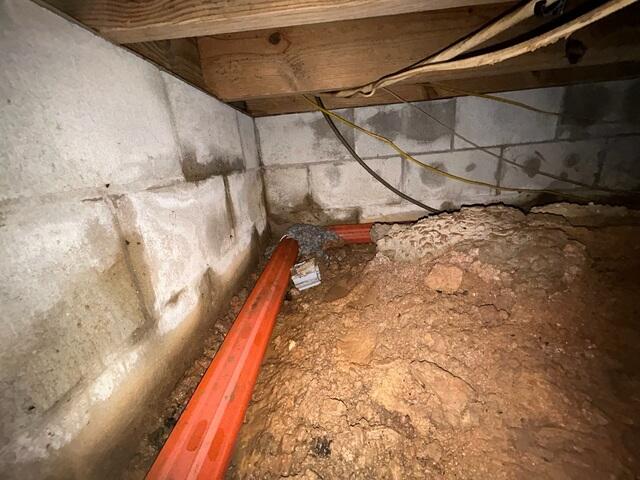

StarPipe Crawl Space Drainage System

StarPipe™ is a custom-engineered drainage system for crawl spaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

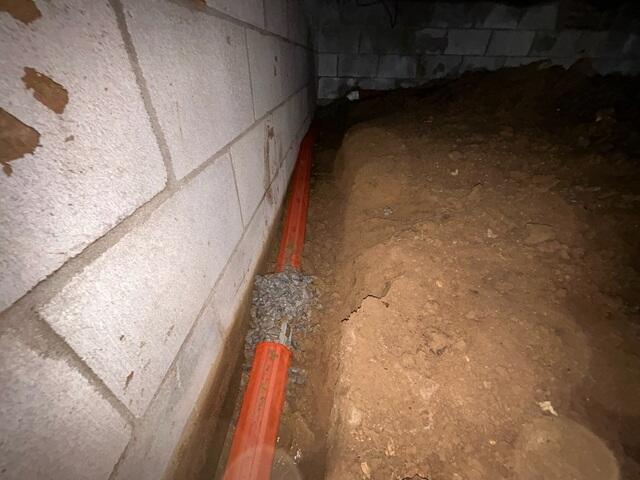

StarPipe Specifications

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawl space and drain to a sump system, allowing the water to quickly evacuate from the crawl space.

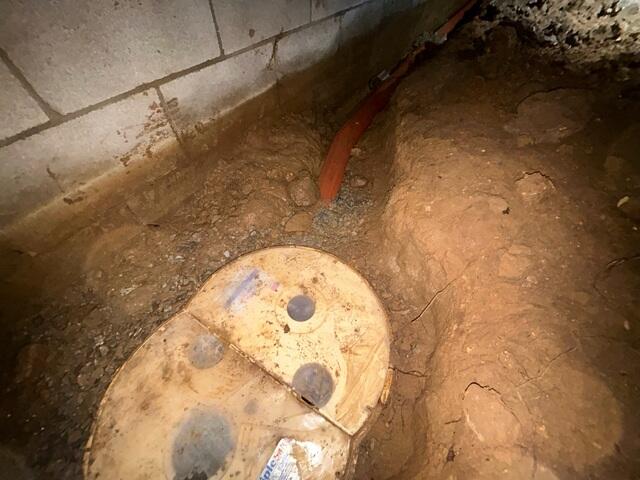

TripleSafe Sump Pump During Installation

A TripleSafe® Sump Pump System (shown here), combined with a SaniDry® dehumidifier, represents the ultimate in crawl space waterproofing and humidity control.

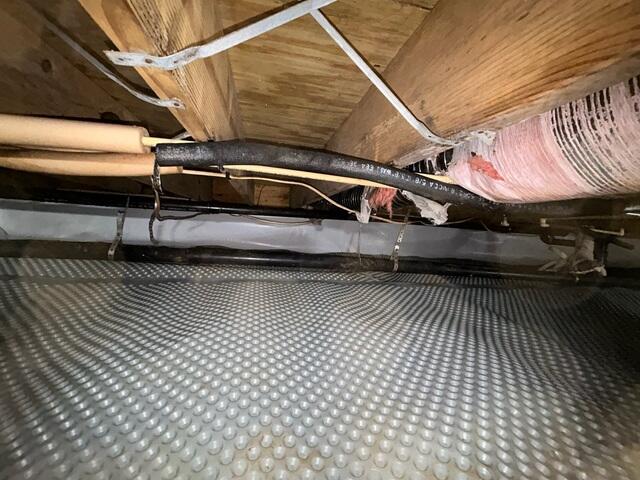

Drainage Matting

Drainage matting forms a permanent seal for leaking crawl space floors.

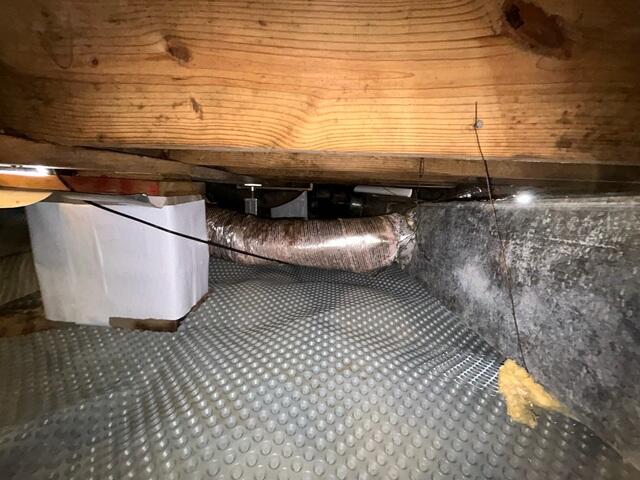

Piers Wrapped

Piers are wrapped in CleanSpace® poly to create a continuous air and moisture barrier.

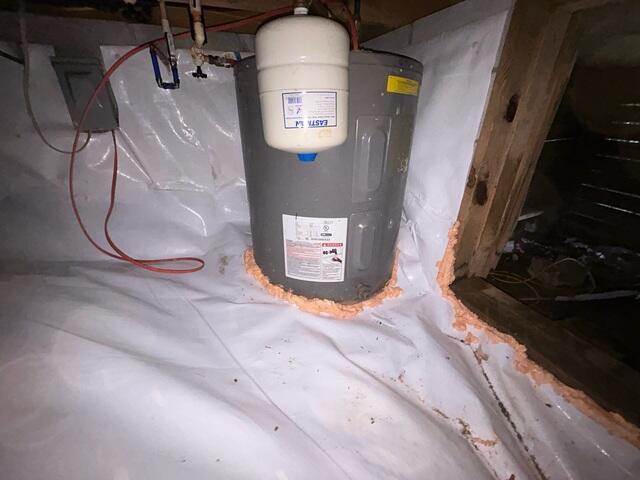

Air Leaks Sealed

Sealing your crawl space air leaks stops the cycle of cold, humidity, and moisture entering from the outside air.

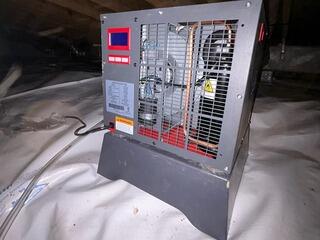

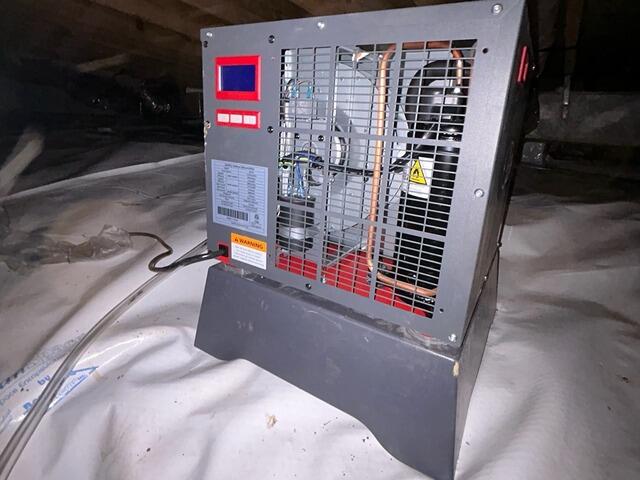

The SaniDry Sedona

Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance. As a high-efficiency dehumidifier, the Sedona removes more moisture (100 pints per day) for less electricity cost than conventional models.

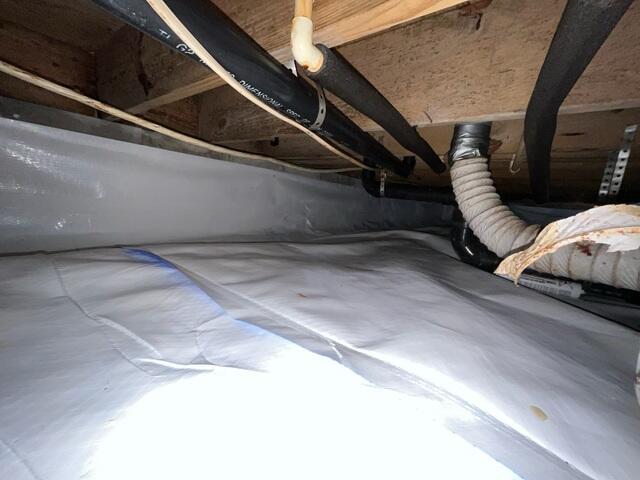

Crawl Space Vapor Barrier Insulated

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

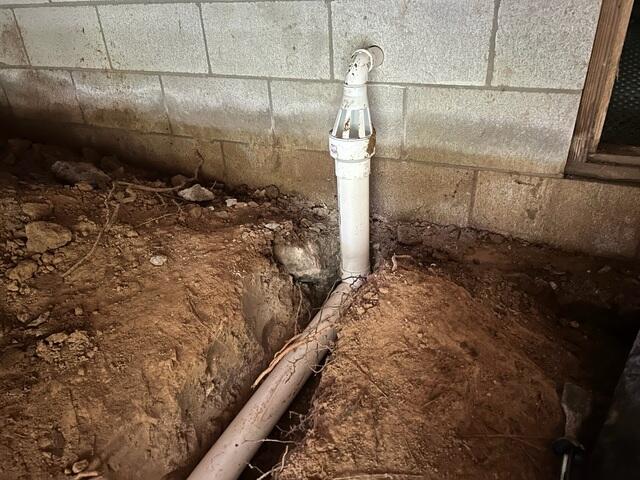

IceGuard Installed

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe.

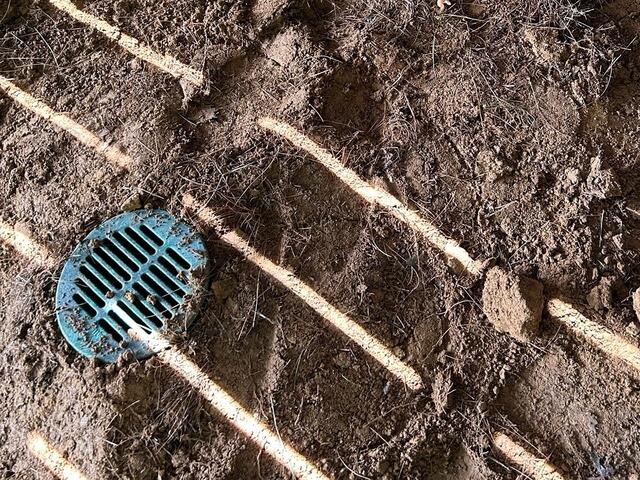

LawnScape Installed

LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.
