Crawl Space Repair Photo Album: Crawl Space Repair in Bumpus Mills, TN

Yvonne in Bumpus Mills, TN, contacted Frontier after noticing moisture problems in her crawl space. During the inspection, the design specialist measured a relative humidity level of 84%, well above the recommended 60% threshold where mold growth and pests become more likely. Standing water around the perimeter of the crawl space was contributing to the excessive humidity. To address the moisture intrusion, the Frontier crew installed a drainage system to collect and direct water to a TripleSafe sump pump with battery backup protection. After the water management system was installed, the crawl space was encapsulated with drainage matting and CleanSpace liner to help isolate the home from ground moisture. To help maintain a dry crawl space environment long term, the team installed a SaniDry Sedona dehumidifier to control humidity and reduce the risk of future humidity-related issues.

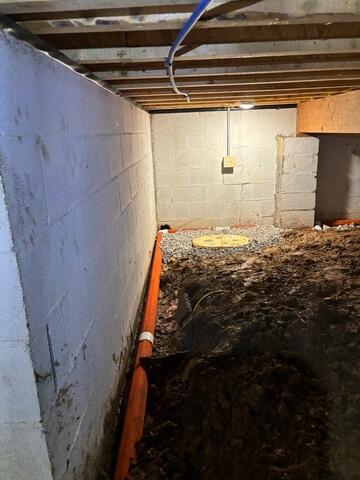

Drainage System Installation

A drainage system was installed around the perimeter of the crawl space to direct intruding water towards the sump pump for removal.

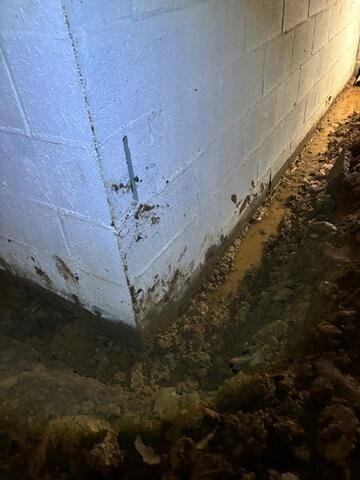

Standing Water

Moisture was accumulating near the edges of the crawl space, contributing to high humidity levels.

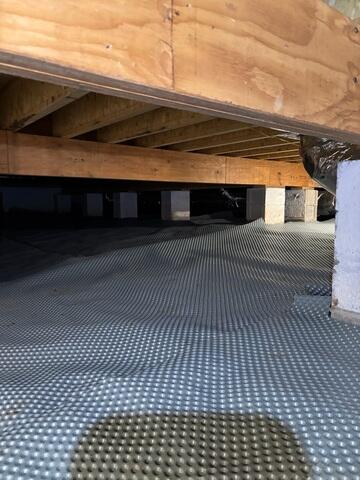

Drainage Matting Installation

Drainage matting is installed underneath CleanSpace liner to allow water to move towards the drainage system.

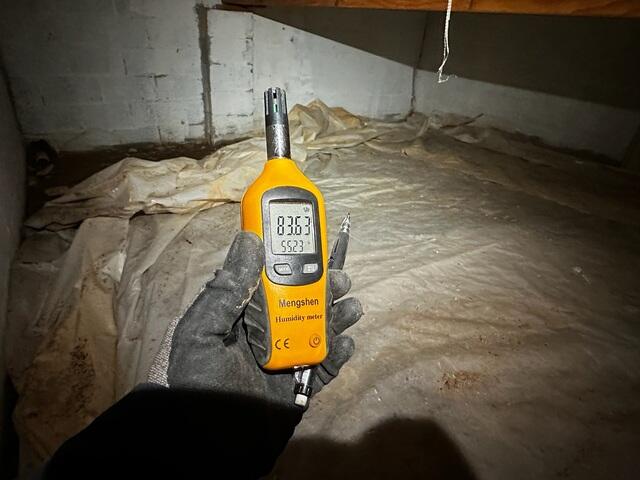

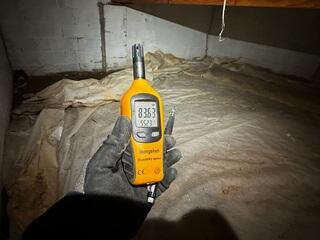

Relative Humidity Measurement

An RH reading over 60% allows enough moisture for mold to grow and attracts pests to the space. This crawl space had an RH of 84%.

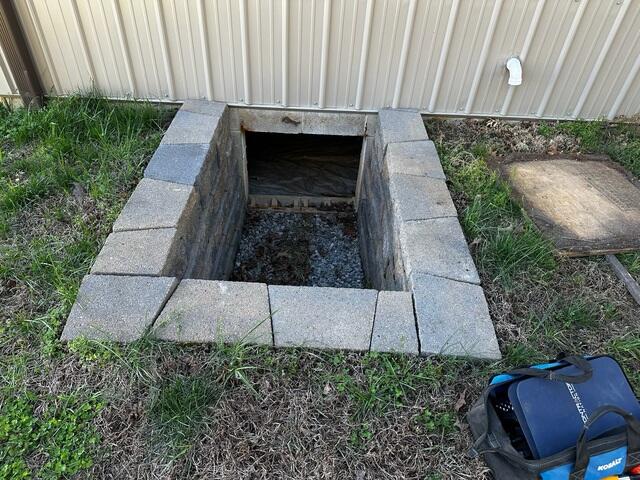

Crawl Space Entrance

This below-grade crawl space entrance increases the likelihood that water will collect and enter through it.

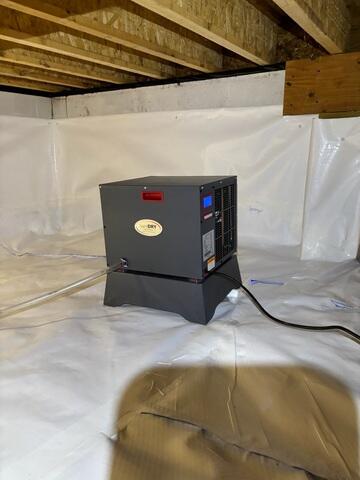

SaniDry Sedona Dehumidifier

Due to elevated relative humidity, a SaniDry Sedona dehumidifier was installed to help maintain humidity below 60%, reducing the risk of mold growth, wood rot, and pest activity in the crawl space.

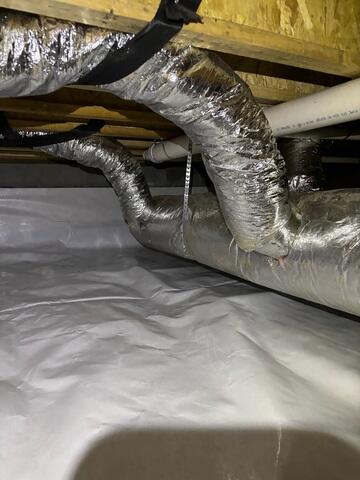

CleanSpace Liner

Frontier's skilled crews encapsulate around barriers such as HVAC ducts and pipes. The entire ground, piers, and walls are sealed, bringing the crawl space into the envelope of the home.

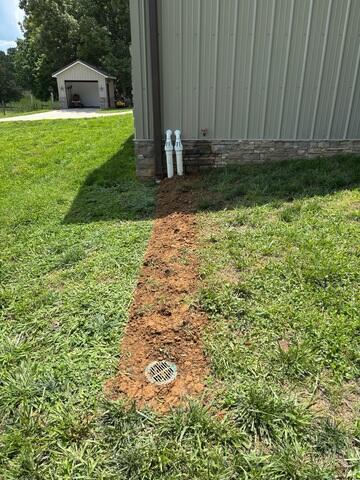

Drainage Line

Water from the sump pump is directed outside the home and exits the LawnScape Outlet. The IceGuard at the beginning of the line allows water to escape in the event of a blockage.

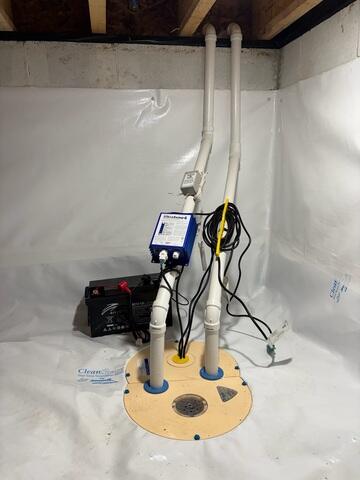

TripleSafe Sump Pump

The TripleSafe sump pump system can remove more than 3,000 gallons of water per hour from the crawl space. Its built-in battery backup helps ensure the system continues operating during a power outage, providing protection when heavy storms and rising water levels are most likely to occur.
