Crawl Space Repair Photo Album: Crawl Space Encapsulation in Nolensville, TN

Kavrin in Nolensville, TN, contacted Frontier after snow melt caused water intrusion in her crawl space. During the inspection, the design specialist confirmed standing water and found efflorescence on the foundation walls, a sign that water was moving through the concrete. To address the issue, the Frontier crew installed a drainage system around the entire perimeter of the crawl space. Due to the size of the home, the system was connected to two TripleSafe sump pumps placed in different areas. Collected water is discharged through an IceGuard and LawnScape Outlet. The crawl space was then encapsulated with drainage matting along the floor and a CleanSpace liner installed on the floors, walls, and piers. A SaniDry Sedona dehumidifier was added to control humidity and help keep the space dry long term.

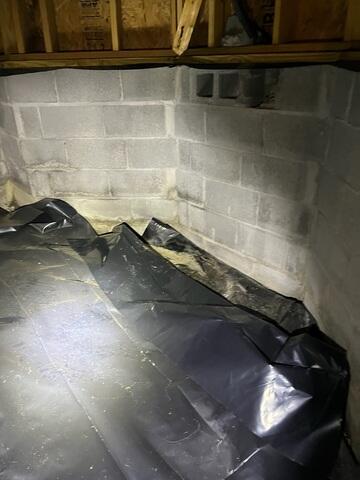

Efflorescence on Foundation Wall

The white, chalky substance on the foundation walls is a sign of moisture intrusion. Hydrostatic pressure pushes water through the block, and as it evaporates into the crawl space, it leaves mineral deposits behind.

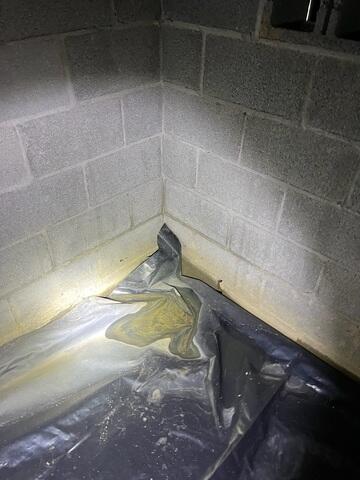

Standing Water

Standing water is often found near the perimeter of the crawl space where the ground dips toward the foundation.

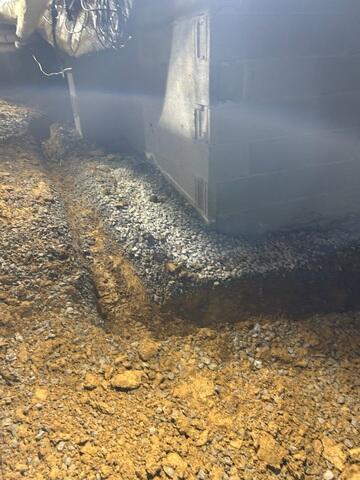

Drainage System Trench

The Frontier crew digs a trench around the entire perimeter of the crawl space to ensure the drainage system is set to collect incoming water.

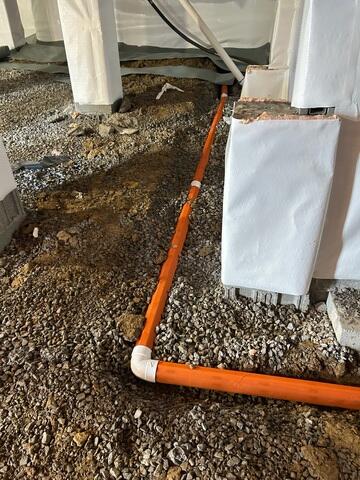

Drainage System Installation

The drainage system is custom-fit to the crawl space and installed along the perimeter to manage water intrusion.

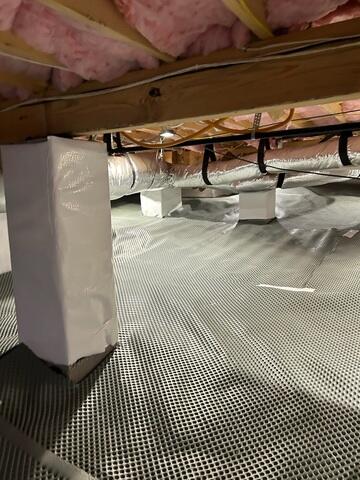

Drainage Matting Installation

Drainage matting is installed underneath CleanSpace liner. It's custom-fit to the home's crawl space and allows water to flow laterally towards the drainage system.

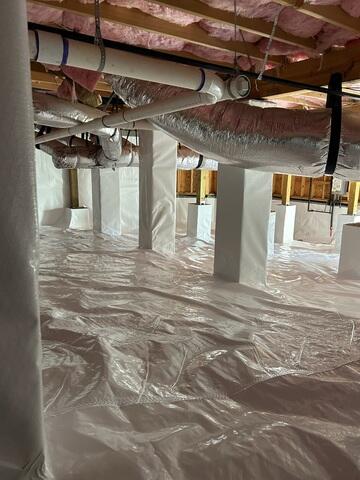

Completed Encapsulation

Encapsulation was completed with CleanSpace liner, which covers the walls, floor, and piers of the crawl space.

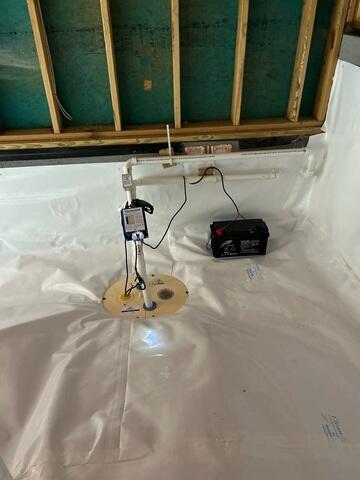

1/2 TripleSafe Sump Pump

The drainage system flows towards the TripleSafe sump pump. The battery backup ensures the pump continues to operate during power outages.

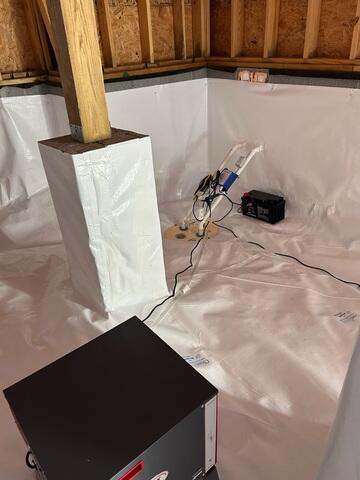

2/2 TripleSafe Sump Pump

Due to the size of the crawl space, this home needed two TripleSafe sump pumps.

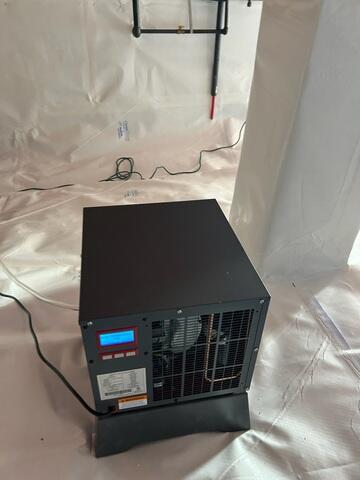

SaniDry Sedona Dehumidifier

The SaniDry Sedona dehumidifier removes humidity from the crawl space, preventing mold growth.

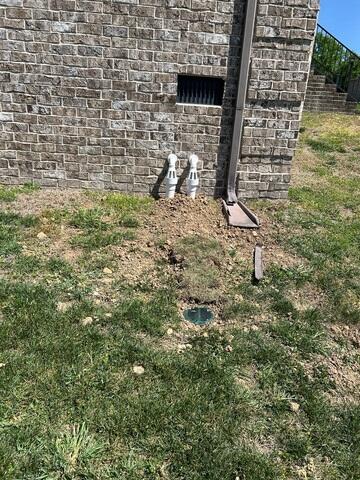

IceGuard and LawnSpace Outlet

"The TripleSafe sump pump discharges water through the IceGuard, allowing it to escape even if the line becomes clogged or frozen before reaching the LawnScape Outlet.
