Crawl Space Repair Photo Album: Crawl Space Encapsulation in Huntsville, AL

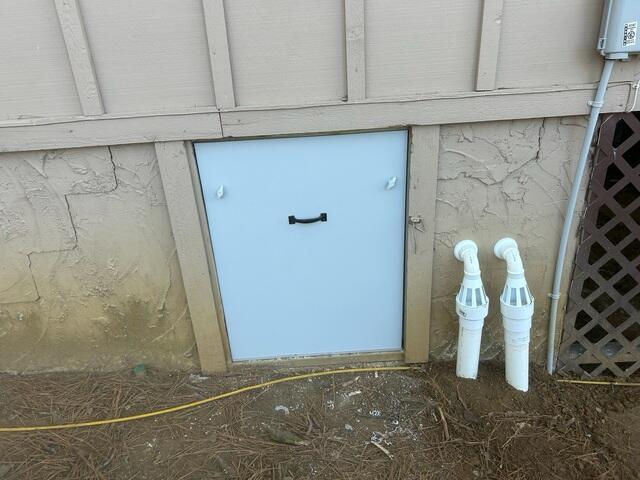

This customer in Huntsville, AL, called Frontier to complete a crawl space encapsulation. To start the project, we cleaned out all the debris. Then we installed our StarPipe crawl space drainage system, followed by the addition of drainage matting, a CleanSpace liner, a TripleSafe sump pump and SaniDry Sedona dehumidifier. We finished this project by installing an IceGuard and LawnScape drainage system as well as a new crawl space door.

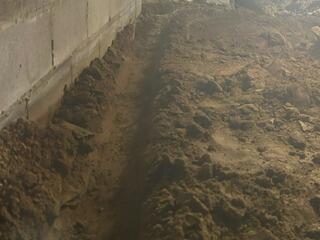

Trench Dug

A trench is dug in preparation to install the crawl space drainage system.

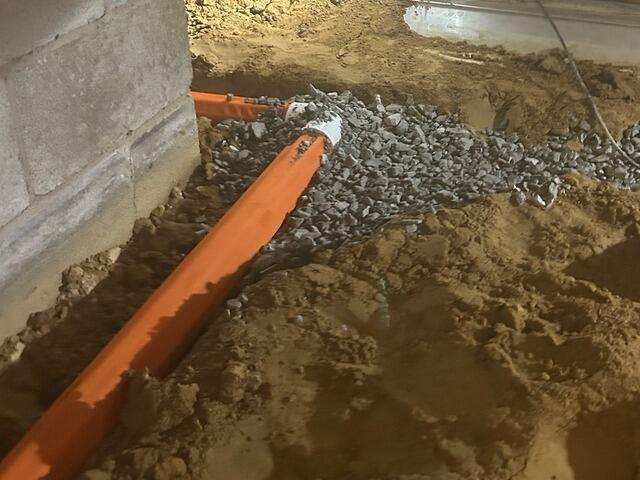

StarPipe Crawl Space Drainage System

StarPipe™ is a custom-engineered drainage system for crawl spaces. StarPipe's™ custom design has slots on each side, providing a drainage track on the bottom. StarPipe's™ unique star shape holds the fabric sleeve in place to prevent dirt from entering drainage slots.

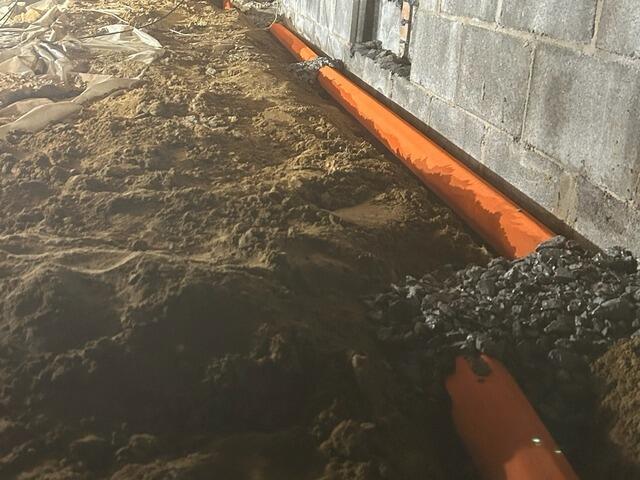

StarPipe

StarPipe™ is designed to be an easily installed conduit to accept water from the soil and surface of perimeter walls of your crawl space and drain to a sump system, allowing the water to quickly evacuate from the crawl space.

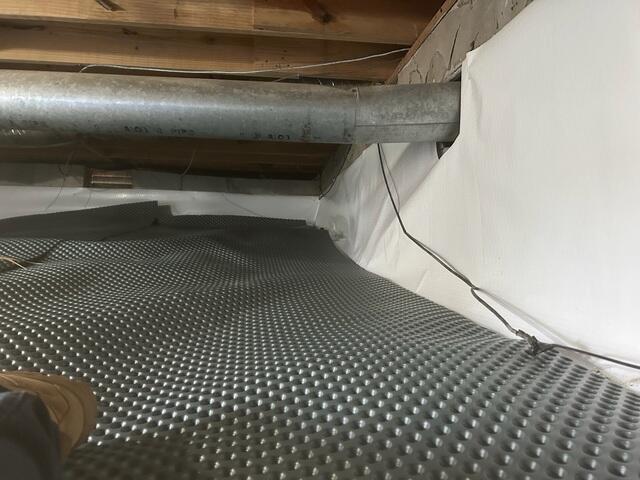

Drainage Matting Installed

Drainage matting forms a permanent seal for leaking crawl space floors.

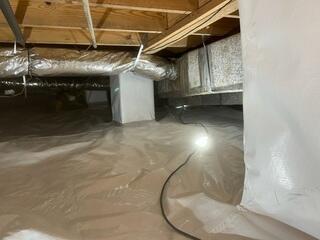

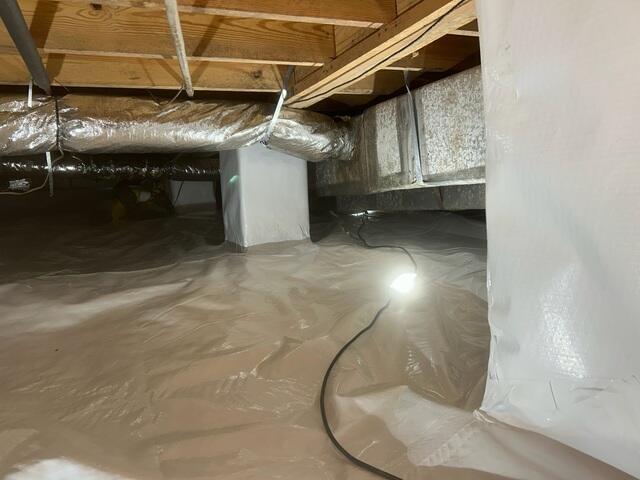

Piers Wrapped

Piers are wrapped in CleanSpace® poly to create a continuous air and moisture barrier.

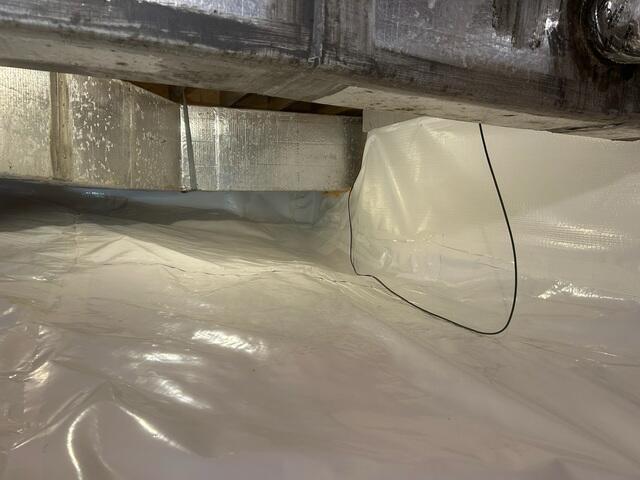

CleanSpace Installed

One key ingredient in our encapsulation system is the CleanSpace® vapor barrier, a super-durable 20-mil plastic sheet designed to permanently prevent moisture, outside air, and pests from entering your crawl space.

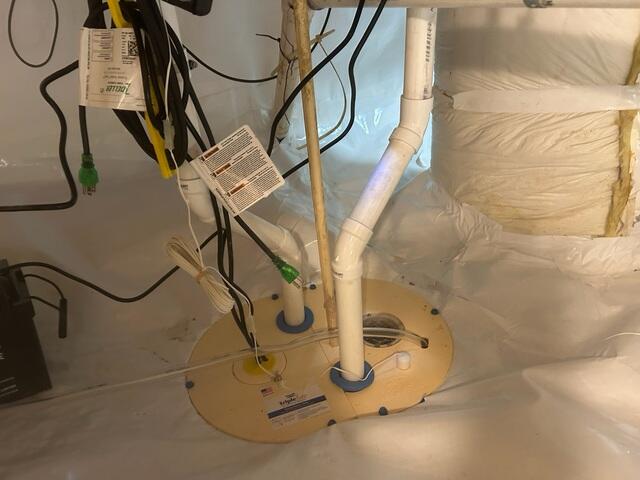

TripleSafe Sump Pump Installed

A TripleSafe® Sump Pump System (shown here), combined with a SaniDry® dehumidifier, represents the ultimate in crawl space waterproofing and humidity control.

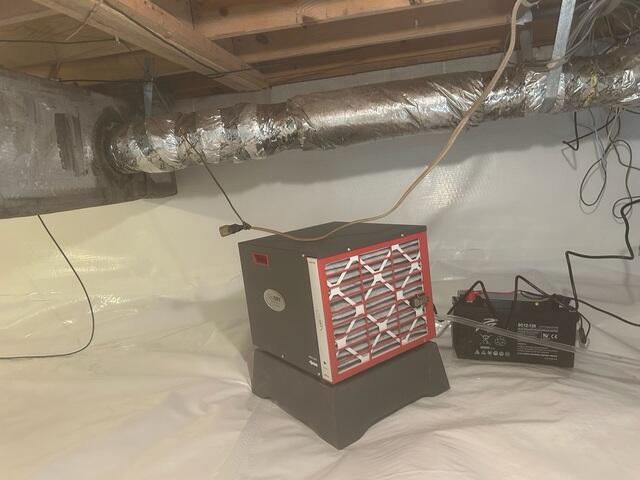

The SaniDry Sedona

Mold and mildew are common in crawl spaces, but the Sedona keeps the relative humidity below 55%, so mold won't stand a chance.

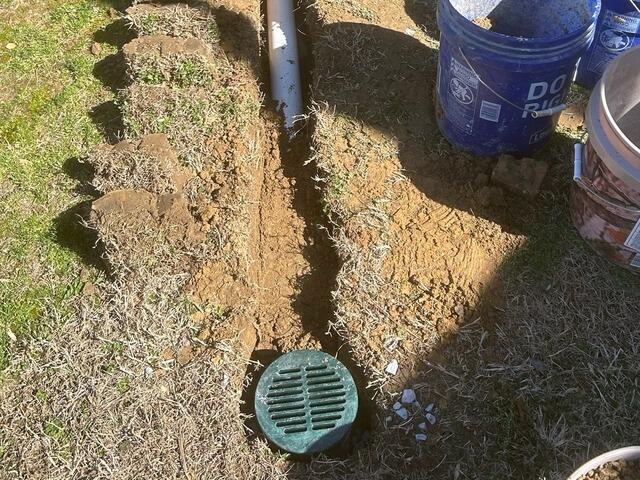

IceGuard and LawnScape System Installation

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe. LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.
