Basement Waterproofing Photo Album: Basement Waterproofing in Smithville, TN

This customer in Smithville, TN, called Frontier after a water intrusion in their basement. To waterproof their basement, we installed a WaterGuard sub-floor drainage system and a TripleSafe sump pump to pump water through the drainage lines. We also installed IceGuard to prevent floods from clogged or frozen discharge lines and a LawnScape system. Now their basement is dry and clean.

Water Intrusion

Obvious water intrusion i this homes basement.

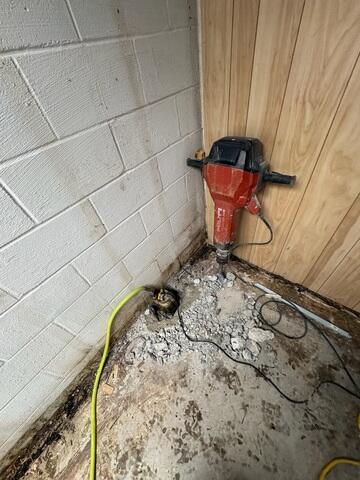

Excavating

Excavating areas for the drainage system and sump pump.

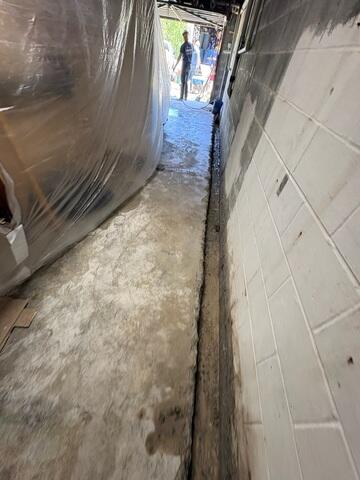

Excavation Complete

An area has been excavated to fit the WaterGuard drainage system along the perimeter wall.

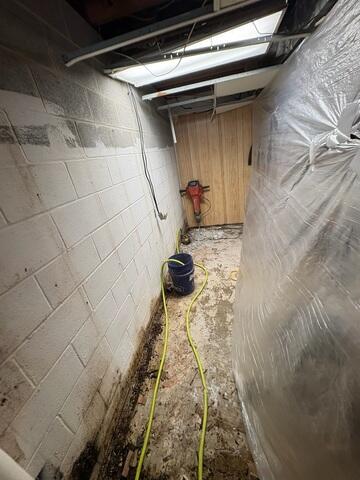

Excavation Process

An area is being excavated along the perimeter and at the lowest point a bigger area will be excavated for the sump pump.

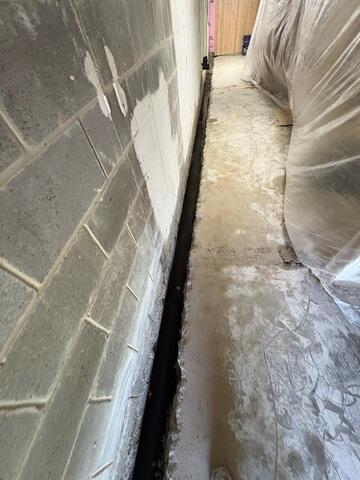

Weep Holes

Weep holes are drilled after the area is excavated. This allows water to seep out of the wall and into the drainage system.

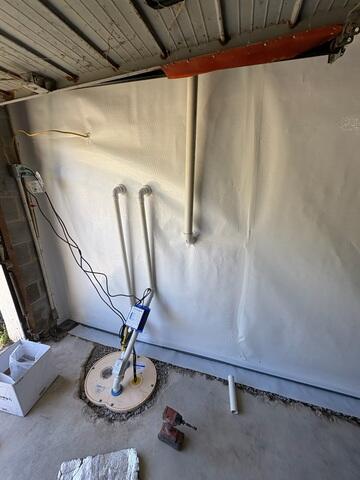

WaterGuard and Sump Pump

CleanSpace is added to the walls, the sump pump has been installed and the WaterGuard System has been placed.

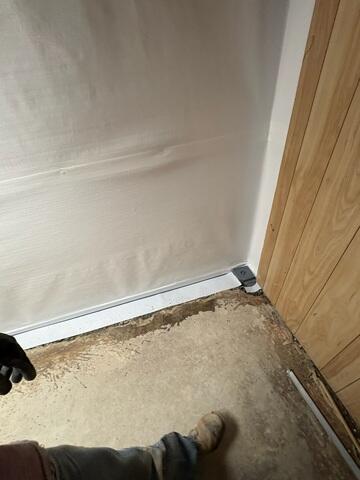

CleanSpace Wall Installed

CleanSpace is added to the walls and placed over the WaterGuard system.

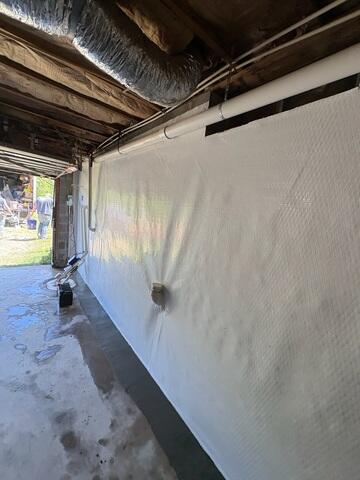

Cement Added

A thin layer of cement is added over the WaterGuard system to secure it.

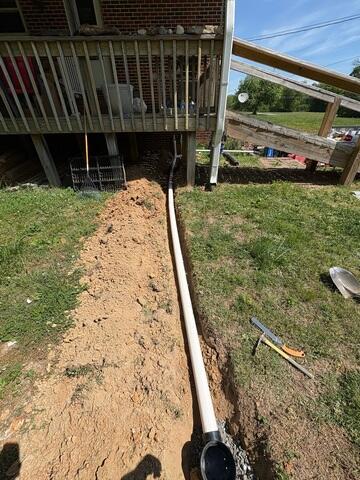

Drainage System Install

Water escapes from the IceGuard® fitting only when the discharge line becomes clogged. Otherwise, water flows past the slotted openings into the drain pipe. LawnScape™ is a pipe buried from the downspout to a special LawnScape™ outlet that lets the water out onto the surface while camouflaging the end of the pipe. The lid comes off for easy cleaning. LawnScape™ is best used for downspout extensions over 8' long.
