Exterior Drain Tile Systems in Tennessee and Kentucky
Pros and Cons of Repairing your Wet Basement with an Exterior French Drain

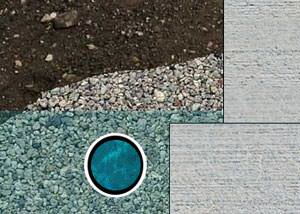

Cutaway of a French drain system installed on the outside of the concrete footing of a home foundation. A discharge line would also be included to send the water away from your home.
Shown in this photo is the French drain itself (filled with water), a fill of stone, and the backfilled soil.
One way of basement waterproofing that many contractors will suggest for waterproofing a basement is to install a french drain system along the outside perimeter of your home.
To install an exterior French drain, the contractor will take the following steps:
- First, the entire perimeter of your home must be cleared. Gardens, steps, porches, etc., must be removed before the work can begin.
- Next, the contractor will dig out the perimeter of your home. Excavated dirt will be heaped around the house.
- The drain will be laid in a bed of stone along the bottom. The stone, and possibly a layer of filter fabric, are there to protect the drain from clogging.
- The excavated soil will be "backfilled" on top of the system. In a year, this soil will settle, and the contractor will need to return to fill in more soil.
At Frontier Basement Systems, we do not recommend this type of drainage system installed in your home. Instead, we suggest installing an interior basement drain along the inside perimeter of your basement or crawl space. For a free waterproofing quote in the Tennessee and Kentucky area, call or e-mail us today!
Getting Ready To Install an Exterior French Drain |
|||
|
You Will Need to Remove: |
||
|
|
|
|
You can expect the contractors to create huge heaps of excavated soil all around your home, creating a mess. On top of that, the process is extremely expensive, costing $15,000 to $20,000 per installation. |
|||
Failing French Drains in Tennessee and Kentucky

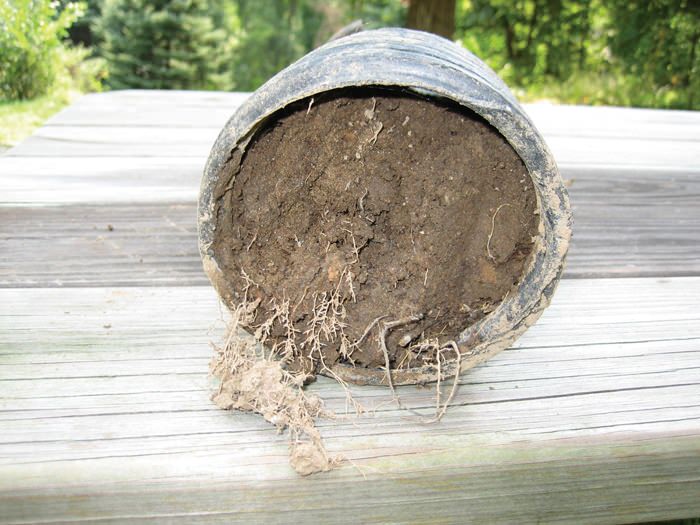

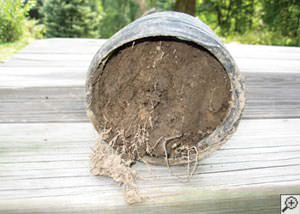

A clogged French drain system found installed around a home in Lewisburg, TN and KY.
French drain systems have been installed on the outside of homes since the 1920's, and if they were the best way to dry a basement, Frontier Basement Systems would be installing them, too.
Unfortunately, placing a French drain or exterior footing drain along the outside is a recipe for failure. When you put a drainage system several feet under the earth, even in a bed of gravel, it will eventually clog with dirt, roots, and debris.
Sometimes, a contractor will try to stop this by laying down a layer of filter fabric around the drain. In this case, instead of the drain clogging, the filter fabric does and won't let water into the pipe. Other problems, such as freezing pipes and improperly sloped lines are also common. This type of exterior drainage commonly will not handle water that collects under your basement floor, in which case you'll still need a sump pump inside your basement. Some contractors even connect the exterior drains to the sump pump inside. Now that's sure to clog!
What happens when your drainage system clogs? It will need to be excavated and you'll have to start over. Who wants to do that again?
For a FREE waterproofing quote, call or e-mail us today!
We service the Tennessee and Kentucky area, including Clarksville, Nashville, Bowling Green, Murfreesboro, Jackson, Franklin, Owensboro, Antioch, Columbia, Hendersonville, Lebanon, Hopkinsville, Brentwood, Madison, Smyrna, Gallatin, Mount Juliet, Paducah, Cookeville, Hermitage, Glasgow, Murray, Goodlettsville, Springfield, Dickson, Mayfield, Old Hickory, Lawrenceburg, Fort Campbell and nearby.
